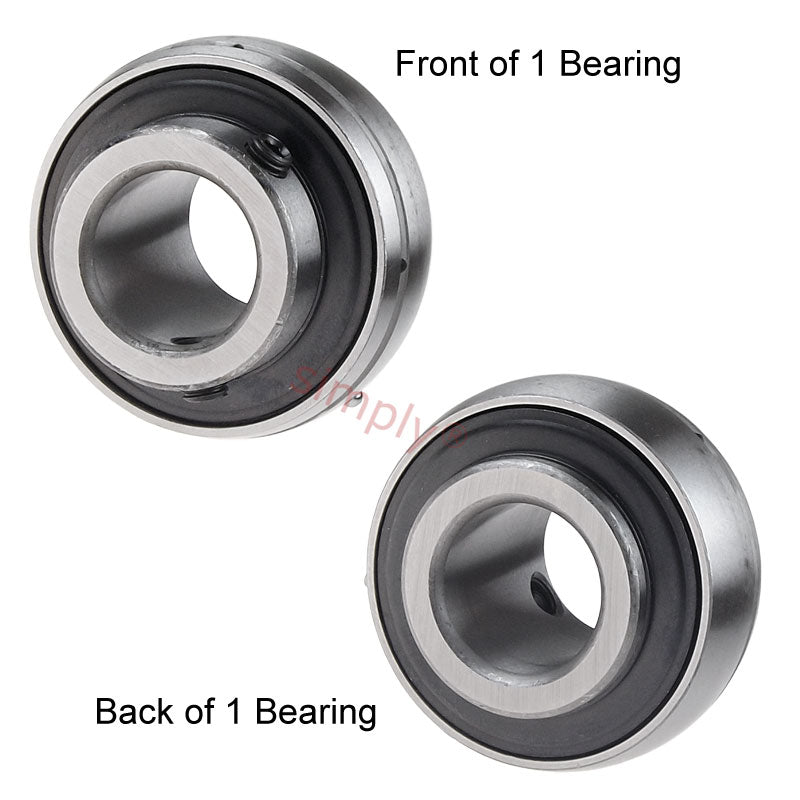

UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia

SKU: UC.215-47

UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia

CHF 78.00 ex VAT
CHF 78.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 69.42
4 CHF 65.52
9 CHF 64.74
19 CHF 63.96
49 CHF 63.18
99 CHF 62.40
499 CHF 58.50
999 CHF 57.72
1999 CHF 56.94
2999 CHF 56.16
4999 CHF 54.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia
SKU: UC.215-47

UC215-47 Imperial Bearing Insert with 2-15/16 inch Bore 130mm Outside Dia

CHF 78.00 ex VAT
CHF 78.00
ex VAT

Description

UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 2-15/16 inch
D = 130mm
Bi = 77.8mm
Be = 30mm
n = 33.3mm
m = 44.5mm
G = 12mm
Grub screw = 7/16"
-20 UNF = Weight
2.21 kg = Dynamic load
5190 kgf = Static load
4190 kgf = N/A
