SKU: UC.214

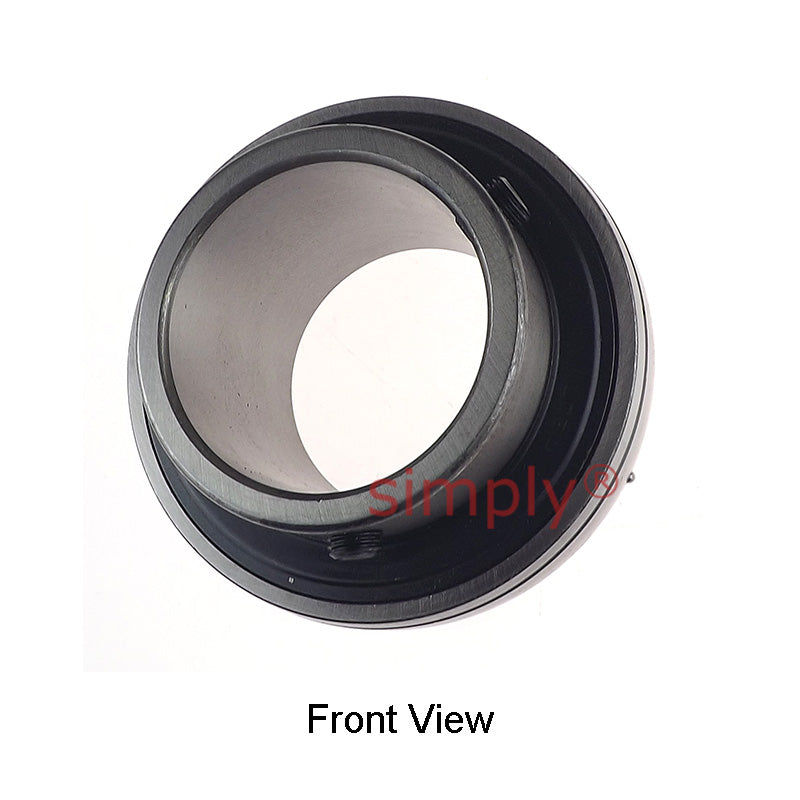

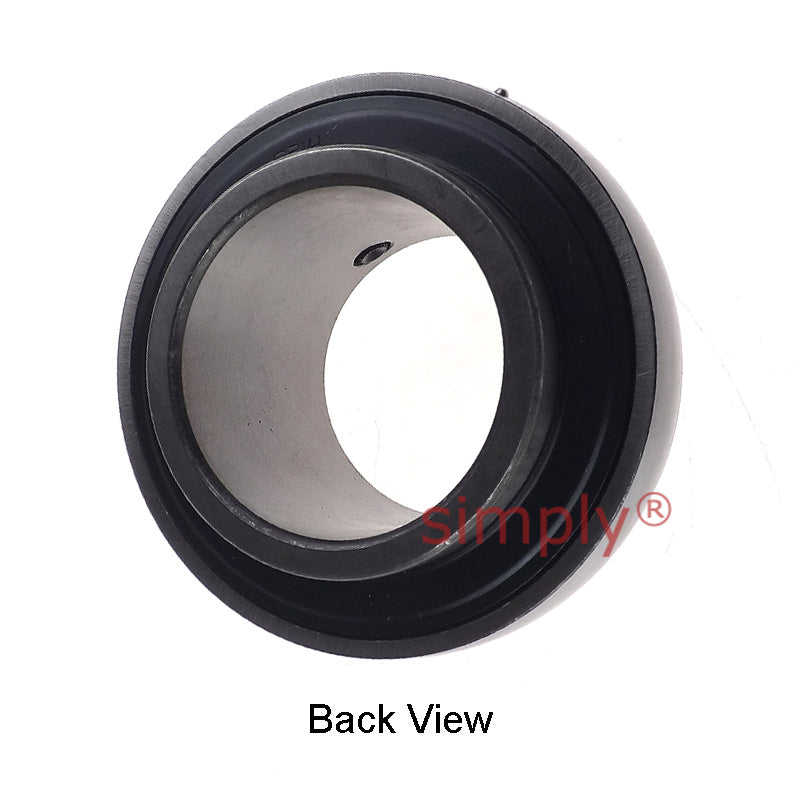

UC214 Metric Bearing Insert with 70mm Bore 125mm Outside Dia
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 42.72
19+
CHF 40.32
29+
CHF 39.84
39+
CHF 39.36
49+
CHF 38.88
74+
CHF 38.40
99+
CHF 36.00
199+
CHF 35.52
249+
CHF 35.04
499+
CHF 34.56
999+
CHF 33.60
SKU:
UC.214
UC214 Metric Bearing Insert with 70mm Bore 125mm Outside Dia
- Regular price
- CHF 48.00 ex VAT
- Sale price
- CHF 48.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 70mm |
| D | = | 125mm |
| Bi | = | 74.6mm |
| Be | = | 30mm |
| n | = | 30.2mm |
| m | = | 44.4mm |
| G | = | 12mm |
| Grub screw | = | M12x1.5 |
| Weight | = | 2.05 kg |
| Dynamic load | = | 4870 kgf |
| Static load | = | 3810 kgf |
