SKU: UC.213-40

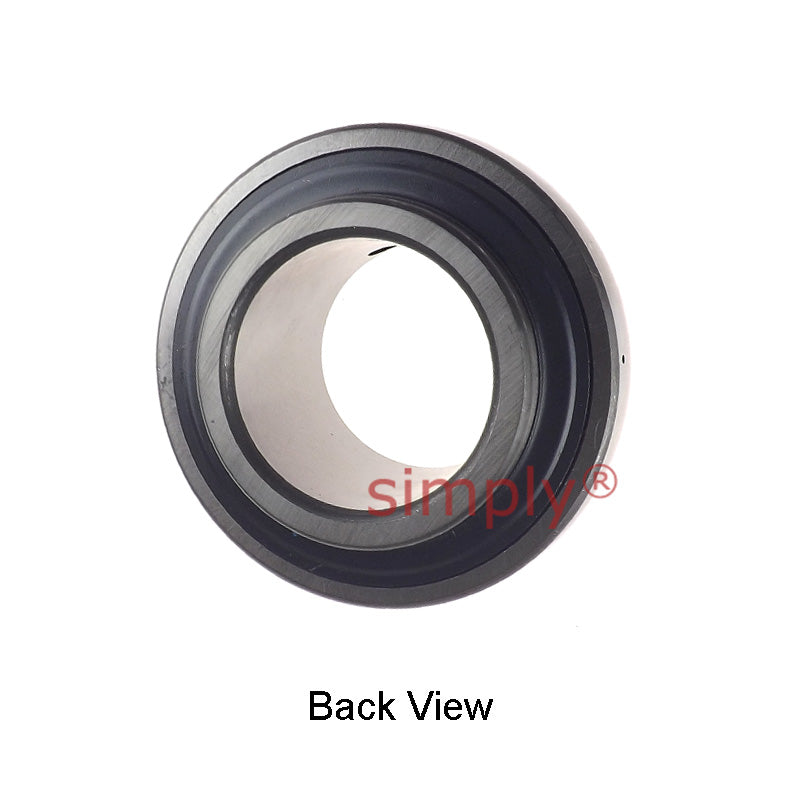

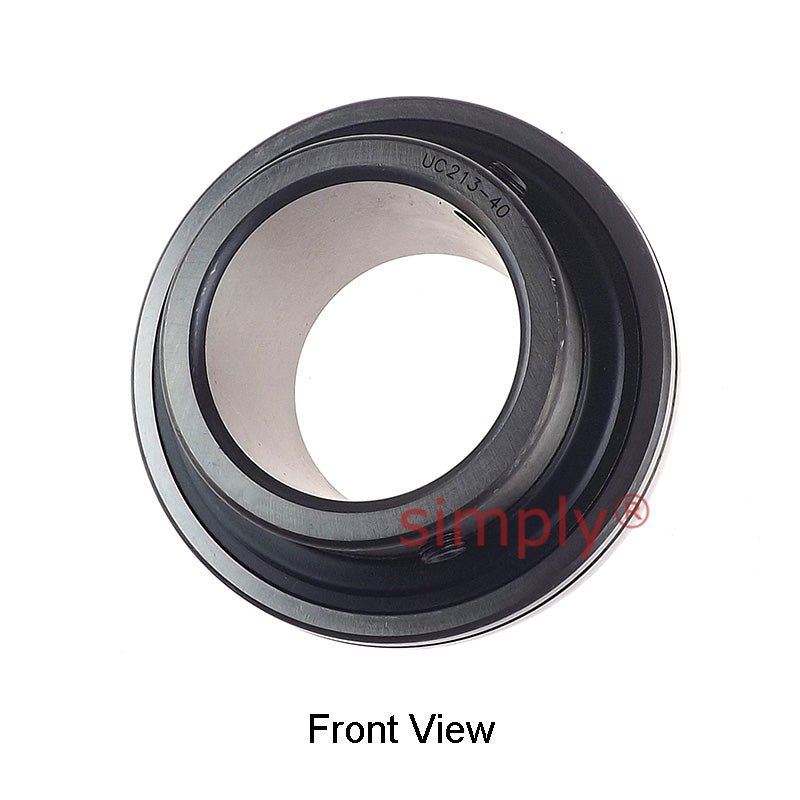

UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
- Regular price
- CHF 44.00 ex VAT
- Sale price
- CHF 44.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 39.16
19+
CHF 36.96
29+
CHF 36.52
39+
CHF 36.08
49+
CHF 35.64
74+
CHF 35.20
99+
CHF 33.00
199+
CHF 32.56
249+
CHF 32.12
499+
CHF 31.68
999+
CHF 30.80
SKU:
UC.213-40
UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
- Regular price
- CHF 44.00 ex VAT
- Sale price
- CHF 44.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2-1/2 inch |
| D | = | 120mm |
| Bi | = | 65.1mm |
| Be | = | 28mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | 3/8" |
| -24 UNF | = | Weight |
| 1.94 kg | = | Dynamic load |
| 4480 kgf | = | Static load |
| 3470 kgf | = | N/A |
