SKU: UC.213

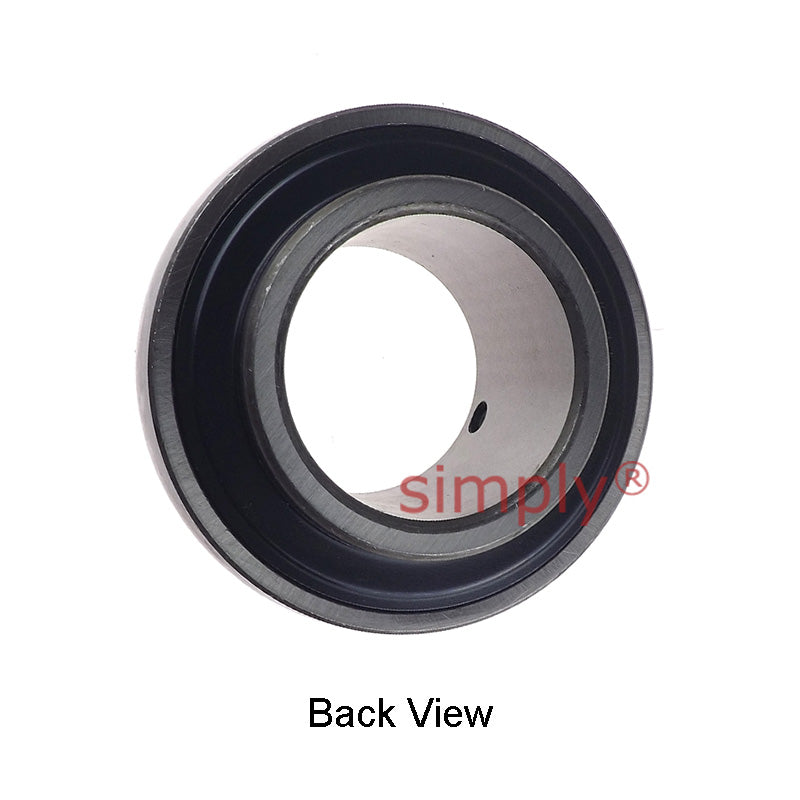

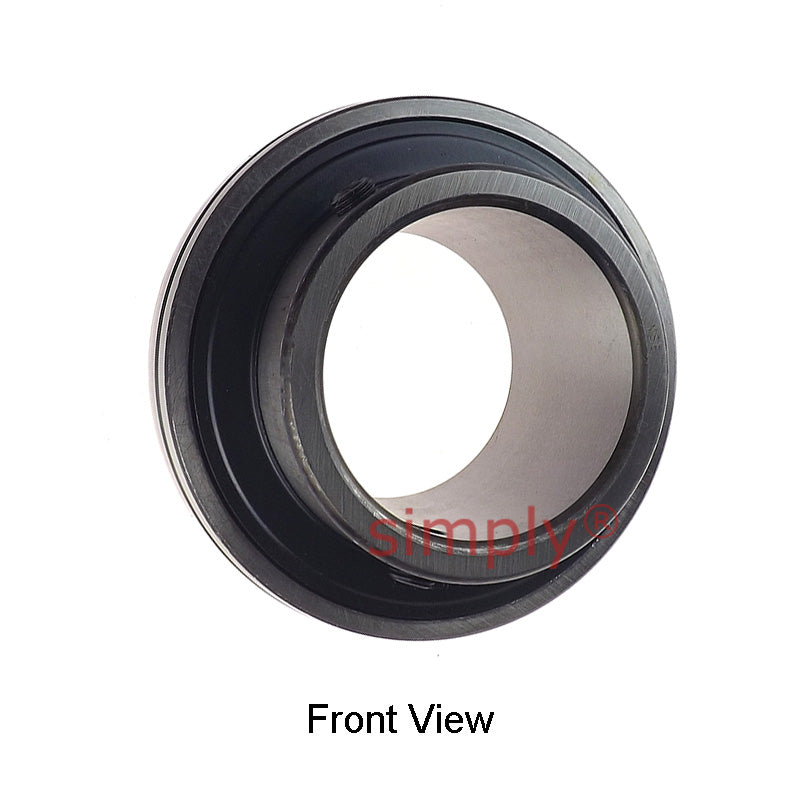

UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
- Regular price
- CHF 43.00 ex VAT
- Sale price
- CHF 43.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 38.27
19+
CHF 36.12
29+
CHF 35.69
39+
CHF 35.26
49+
CHF 34.83
74+
CHF 34.40
99+
CHF 32.25
199+
CHF 31.82
249+
CHF 31.39
499+
CHF 30.96
999+
CHF 30.10
SKU:
UC.213
UC213 Metric Bearing Insert with 65mm Bore 120mm Outside Dia
- Regular price
- CHF 43.00 ex VAT
- Sale price
- CHF 43.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 65mm |
| D | = | 120mm |
| Bi | = | 65.1mm |
| Be | = | 28mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | M10x1.0 |
| Weight | = | 1.86 kg |
| Dynamic load | = | 4480 kgf |
| Static load | = | 3470 kgf |
