SKU: UC.212

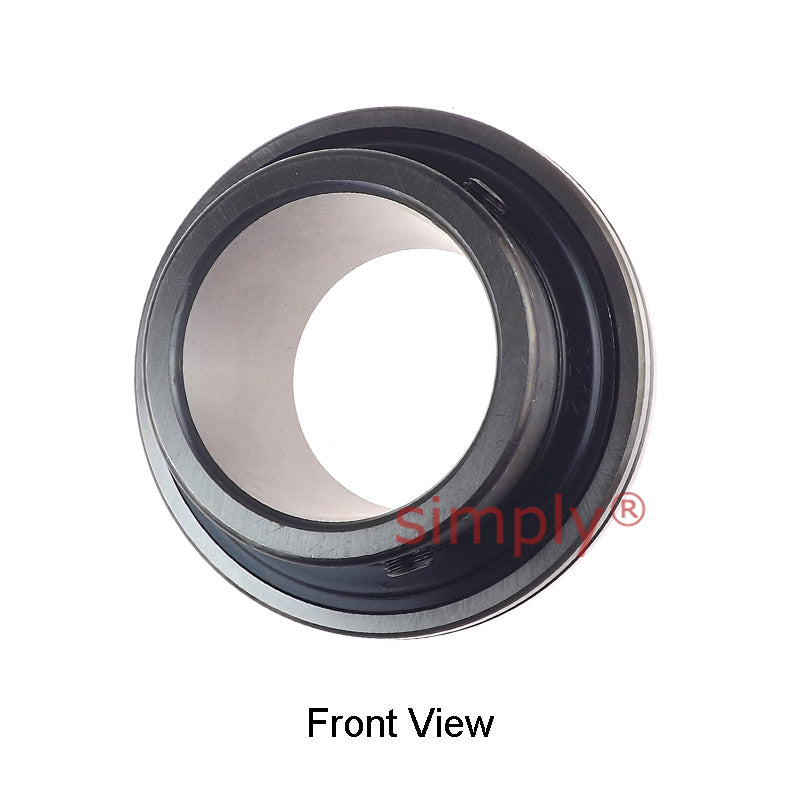

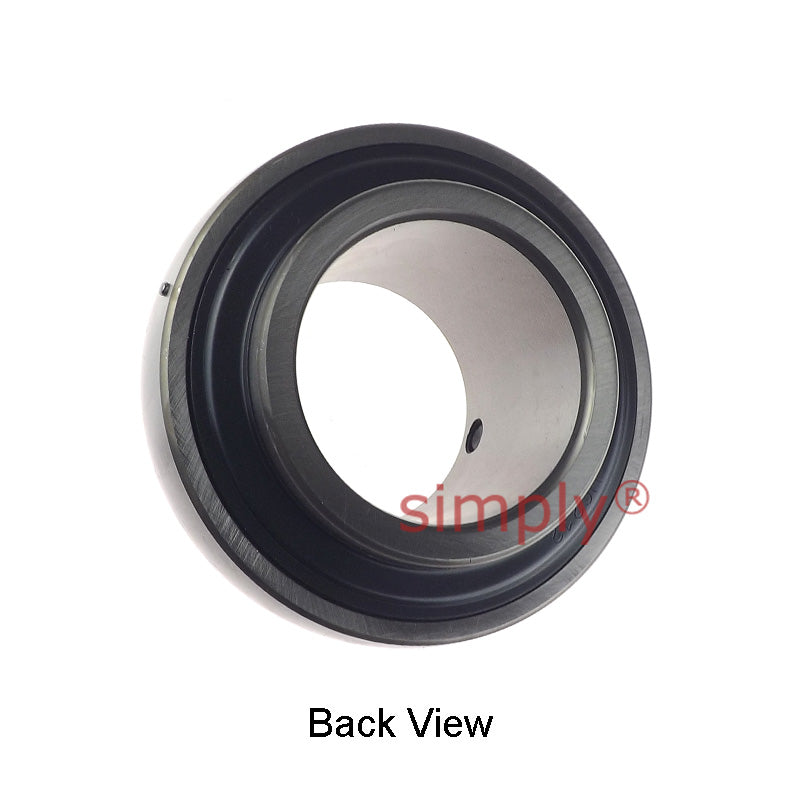

UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
- Regular price
- CHF 34.00 ex VAT
- Sale price
- CHF 34.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 30.26
19+
CHF 28.56
29+
CHF 28.22
39+
CHF 27.88
49+
CHF 27.54
74+
CHF 27.20
99+
CHF 25.50
199+
CHF 25.16
249+
CHF 24.82
499+
CHF 24.48
999+
CHF 23.80
SKU:
UC.212
UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
- Regular price
- CHF 34.00 ex VAT
- Sale price
- CHF 34.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 60mm |
| D | = | 110mm |
| Bi | = | 65.1mm |
| Be | = | 27mm |
| n | = | 25.4mm |
| m | = | 39.7mm |
| G | = | 10mm |
| Grub screw | = | M10x1.0 |
| Weight | = | 1.45 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
| Rec max speed | = | 2800 rpm |
