SKU: UC.211-34

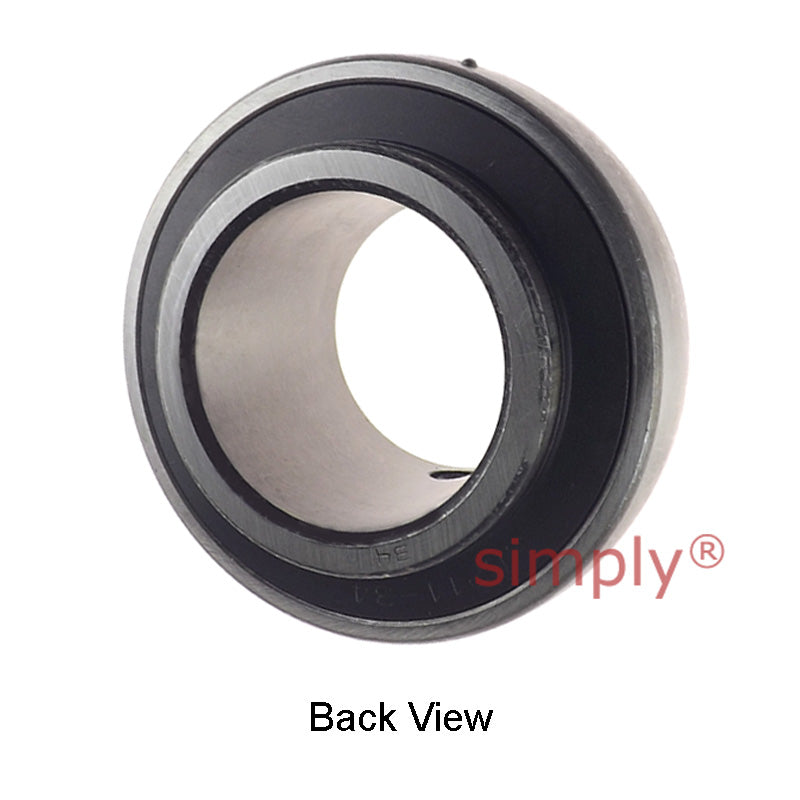

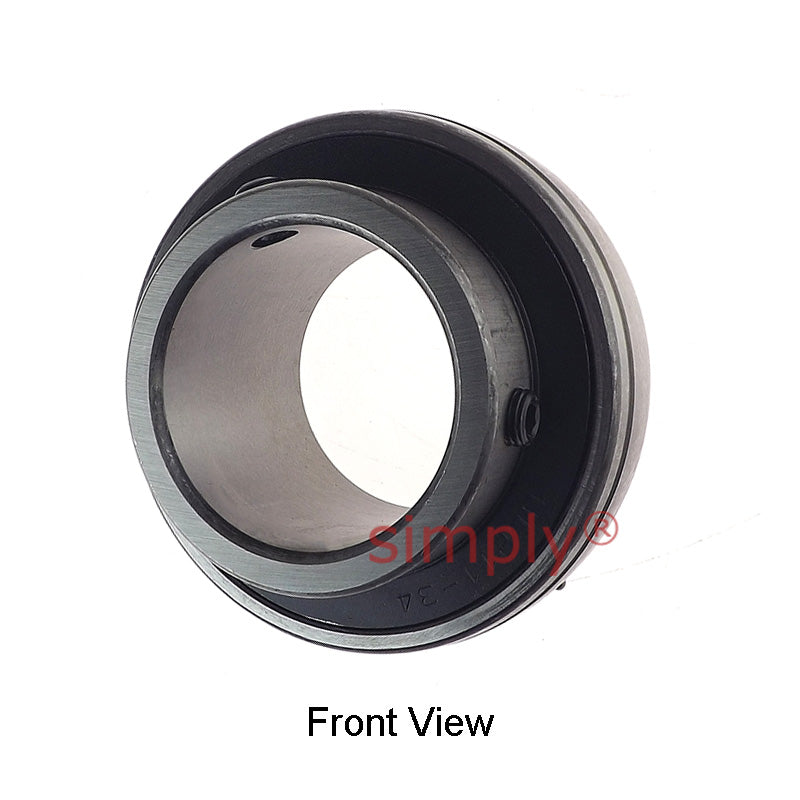

UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
- Regular price
- CHF 29.00 ex VAT
- Sale price
- CHF 29.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 25.81
19+
CHF 24.36
29+
CHF 24.07
39+
CHF 23.78
49+
CHF 23.49
74+
CHF 23.20
99+
CHF 21.75
199+
CHF 21.46
249+
CHF 21.17
499+
CHF 20.88
999+
CHF 20.30
SKU:
UC.211-34
UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
- Regular price
- CHF 29.00 ex VAT
- Sale price
- CHF 29.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2-1/8 inch |
| D | = | 100mm |
| Bi | = | 55.6mm |
| Be | = | 25mm |
| n | = | 22.2mm |
| m | = | 33.4mm |
| G | = | 10mm |
| Grub screw | = | 3/8-24 UNF |
| Weight | = | 1.15 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
