SKU: UC.211

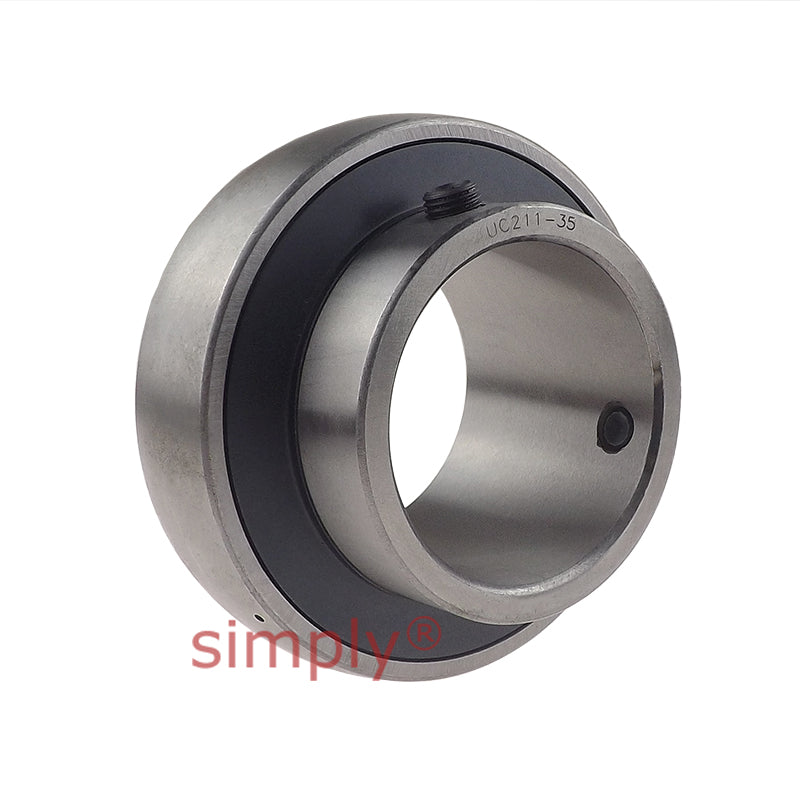

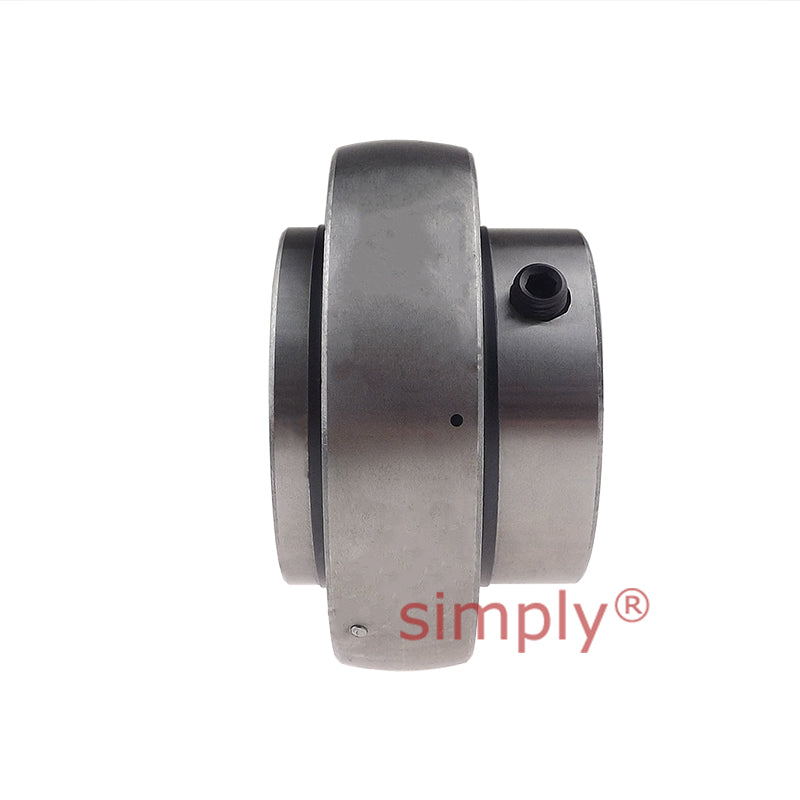

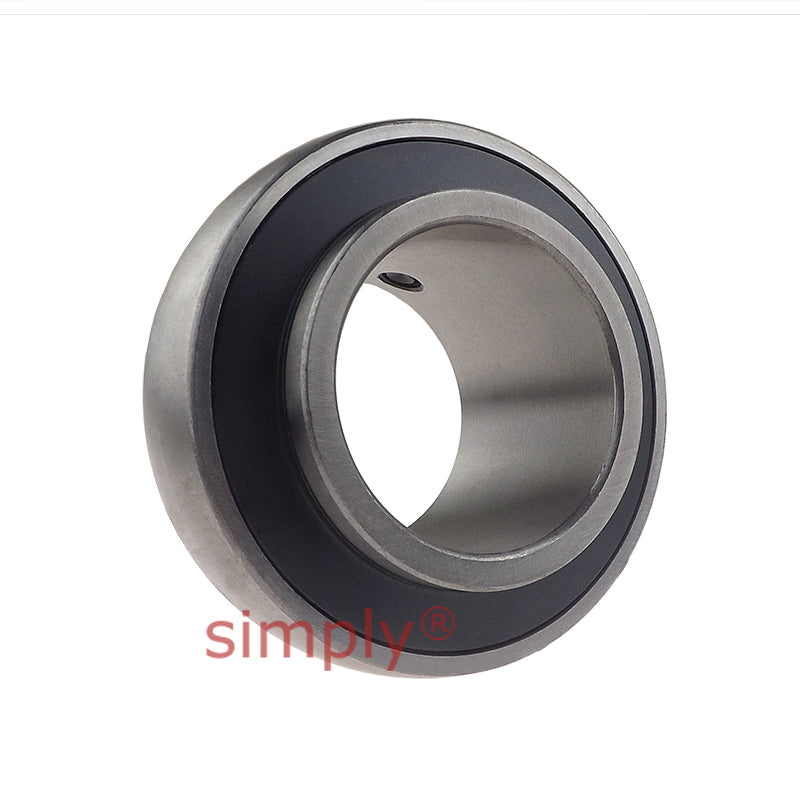

UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
- Regular price
- CHF 27.00 ex VAT
- Sale price
- CHF 27.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 24.03
19+
CHF 22.68
29+
CHF 22.41
39+
CHF 22.14
49+
CHF 21.87
74+
CHF 21.60
99+
CHF 20.25
199+
CHF 19.98
249+
CHF 19.71
499+
CHF 19.44
999+
CHF 18.90
SKU:
UC.211
UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
- Regular price
- CHF 27.00 ex VAT
- Sale price
- CHF 27.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 55mm |
| D | = | 100mm |
| Bi | = | 55.6mm |
| Be | = | 25mm |
| n | = | 22.2mm |
| m | = | 33.4mm |
| G | = | 10mm |
| Grub screw | = | M10x1.0 |
| Weight | = | 1.09 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
| Rec max speed | = | 3100 rpm |
