SKU: UC.210-32

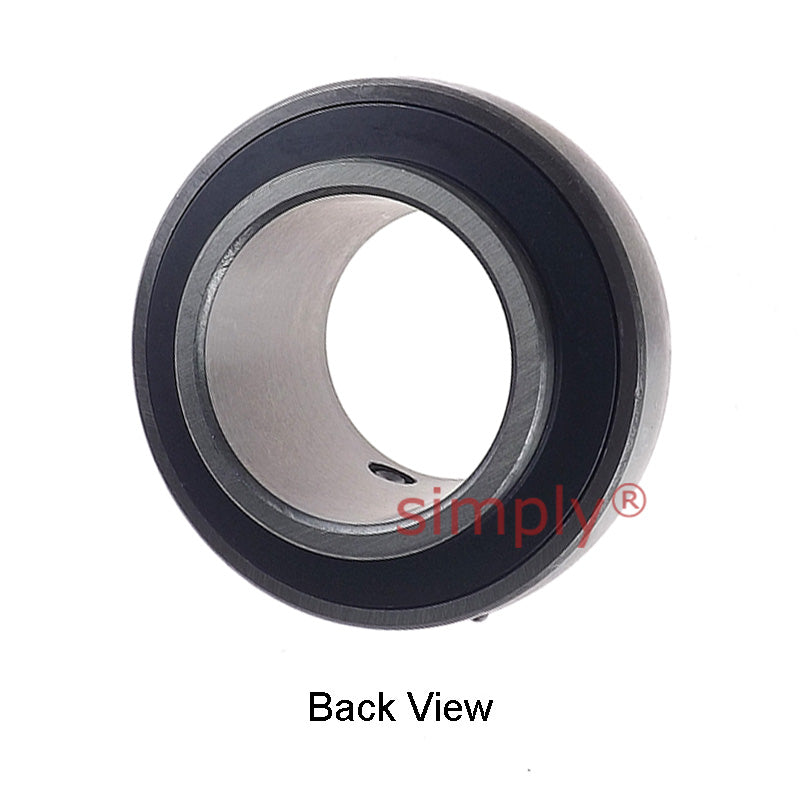

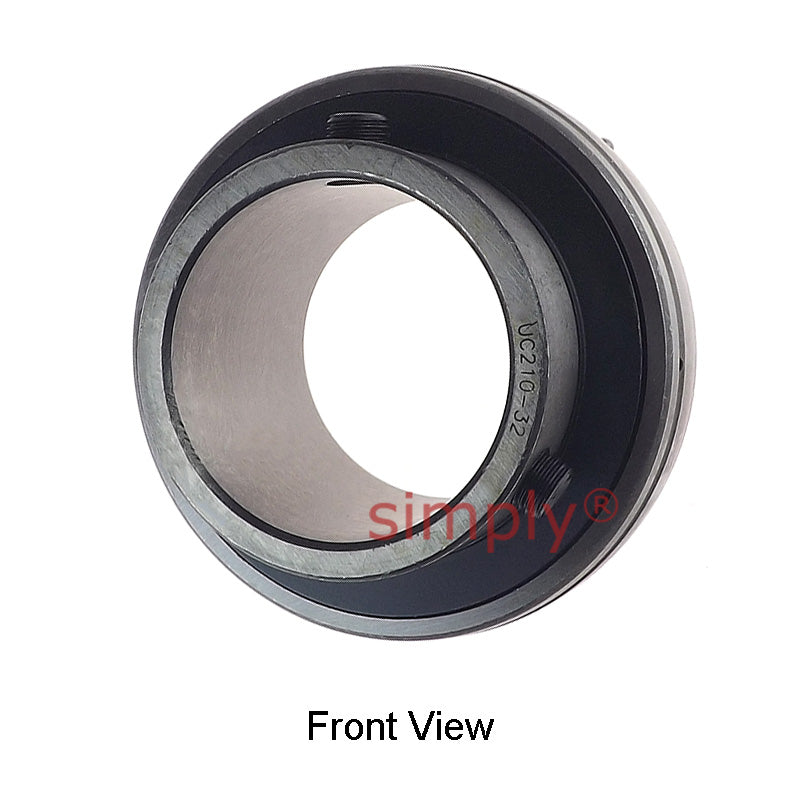

UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 16.02
19+
CHF 15.12
29+
CHF 14.94
39+
CHF 14.76
49+
CHF 14.58
74+
CHF 14.40
99+
CHF 13.50
199+
CHF 13.32
249+
CHF 13.14
499+
CHF 12.96
999+
CHF 12.60
SKU:
UC.210-32
UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 2 inch |
| D | = | 90mm |
| Bi | = | 51.6mm |
| Be | = | 24mm |
| n | = | 19mm |
| m | = | 32.6mm |
| G | = | 10mm |
| Grub screw | = | 3/8" |
| -24 UNF | = | Weight |
| 0.82 kg | = | Dynamic load |
| 2750 kgf | = | Static load |
| 2020 kgf | = | Rec max speed |
| 3400 rpm | = | N/A |
