SKU: UC.209-26

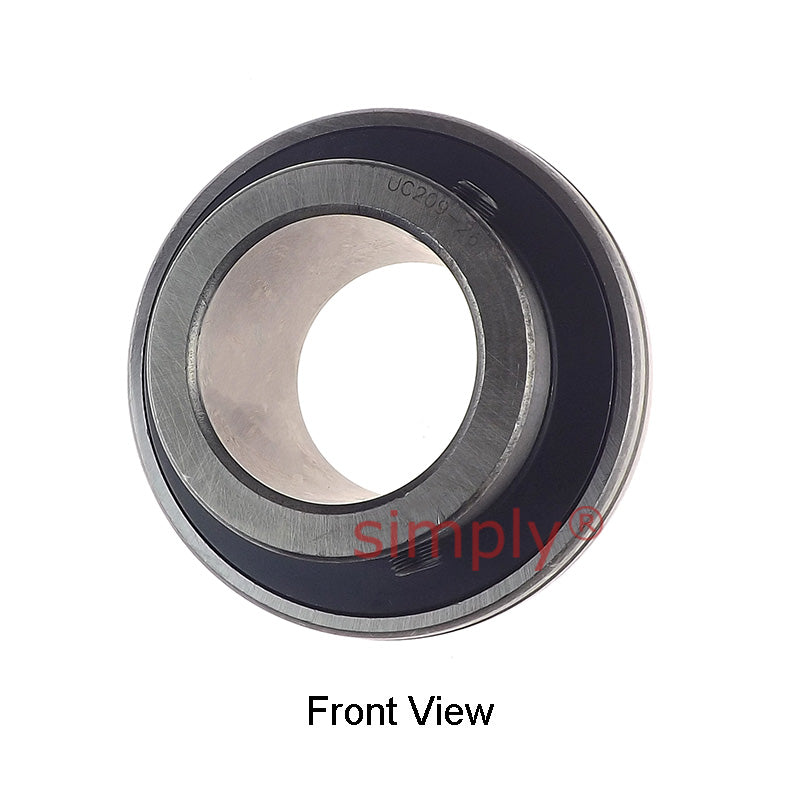

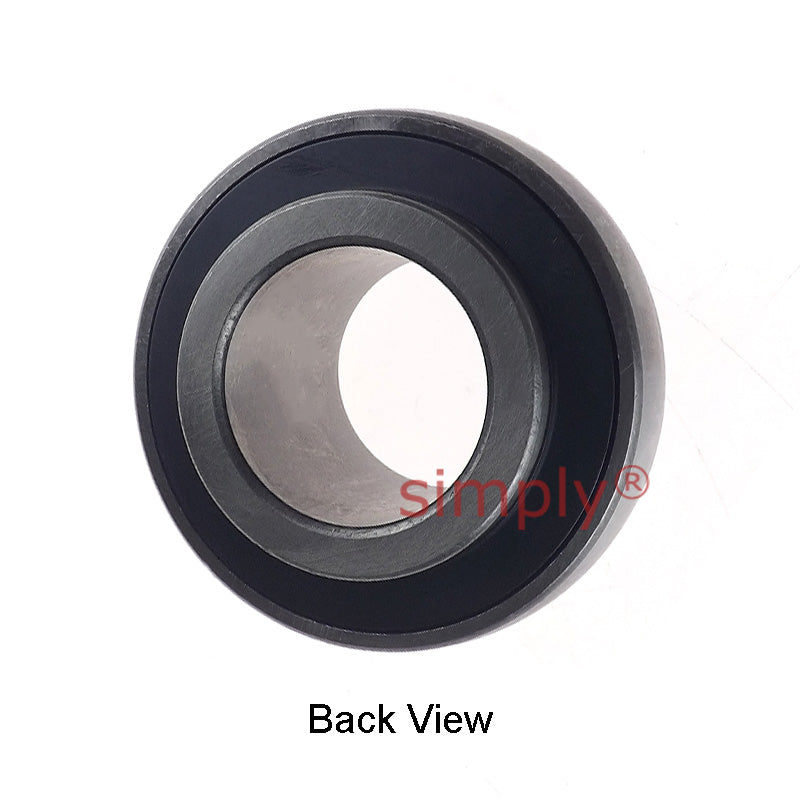

UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
- Regular price
- CHF 16.00 ex VAT
- Sale price
- CHF 16.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 14.24
19+
CHF 13.44
29+
CHF 13.28
39+
CHF 13.12
49+
CHF 12.96
74+
CHF 12.80
99+
CHF 12.00
199+
CHF 11.84
249+
CHF 11.68
499+
CHF 11.52
999+
CHF 11.20
SKU:
UC.209-26
UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
- Regular price
- CHF 16.00 ex VAT
- Sale price
- CHF 16.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 1-5/8 inch |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 10mm |
| Grub screw | = | 5/16" |
| -24 UNF | = | Weight |
| 0.78 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | Rec max speed |
| 3700 rpm | = | N/A |
