SKU: UC.209

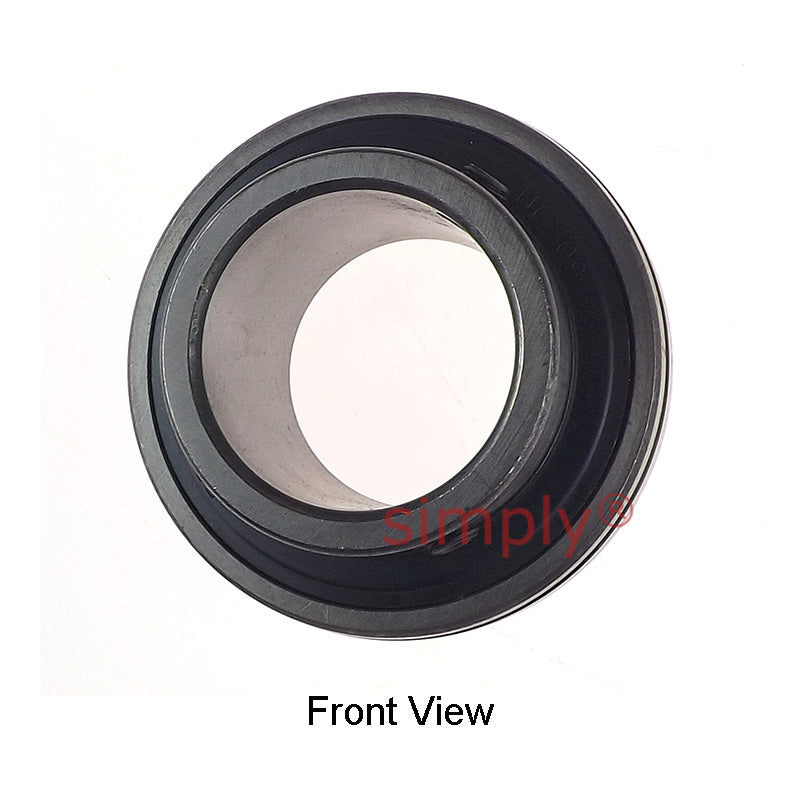

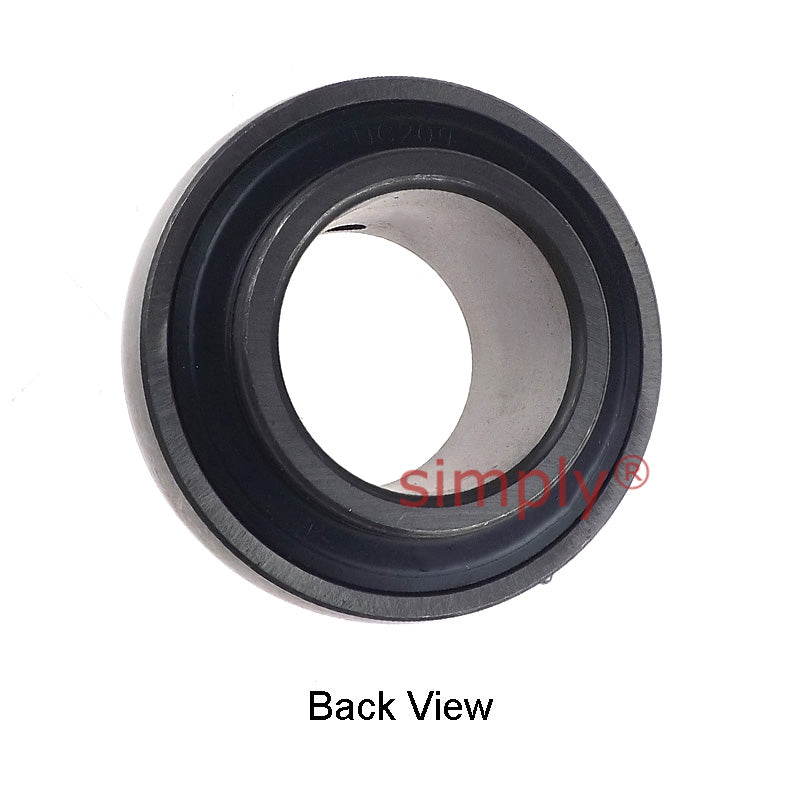

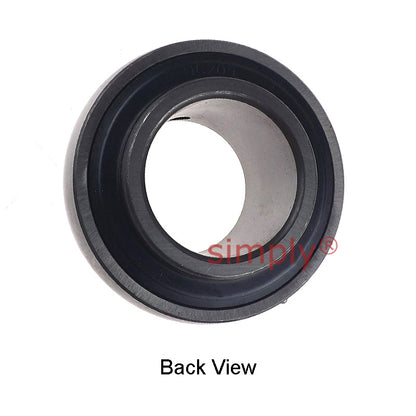

UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 13.35
19+
CHF 12.60
29+
CHF 12.45
39+
CHF 12.30
49+
CHF 12.15
74+
CHF 12.00
99+
CHF 11.25
199+
CHF 11.10
249+
CHF 10.95
499+
CHF 10.80
999+
CHF 10.50
SKU:
UC.209
UC209 Metric Bearing Insert with 45mm Bore 85mm Outside Dia
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 45mm |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 10mm |
| Grub screw | = | M8x1.0 |
| Weight | = | 0.68 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
Downloads
