SKU: UC.208-25

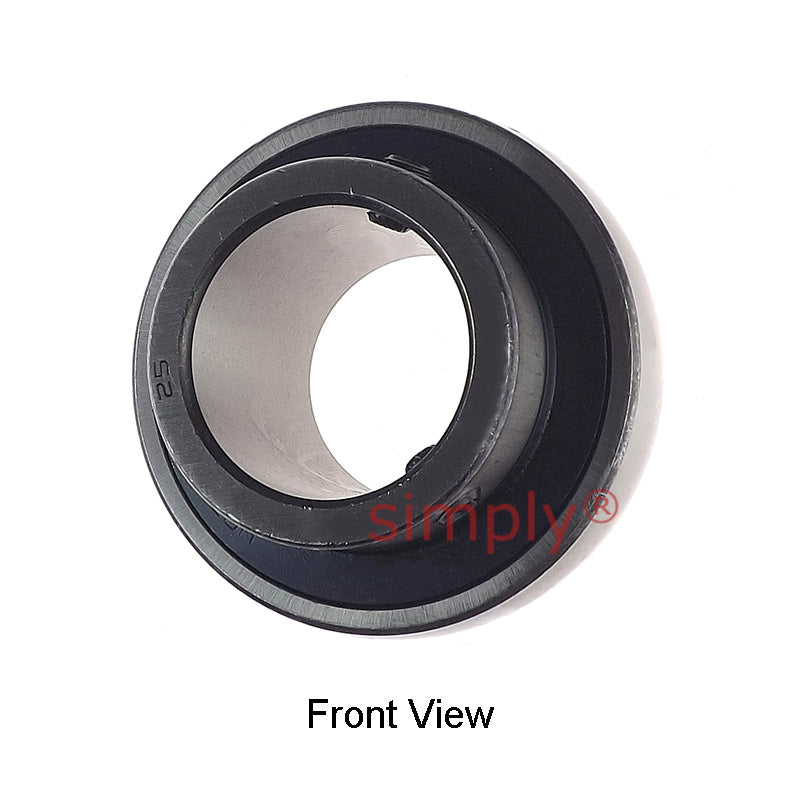

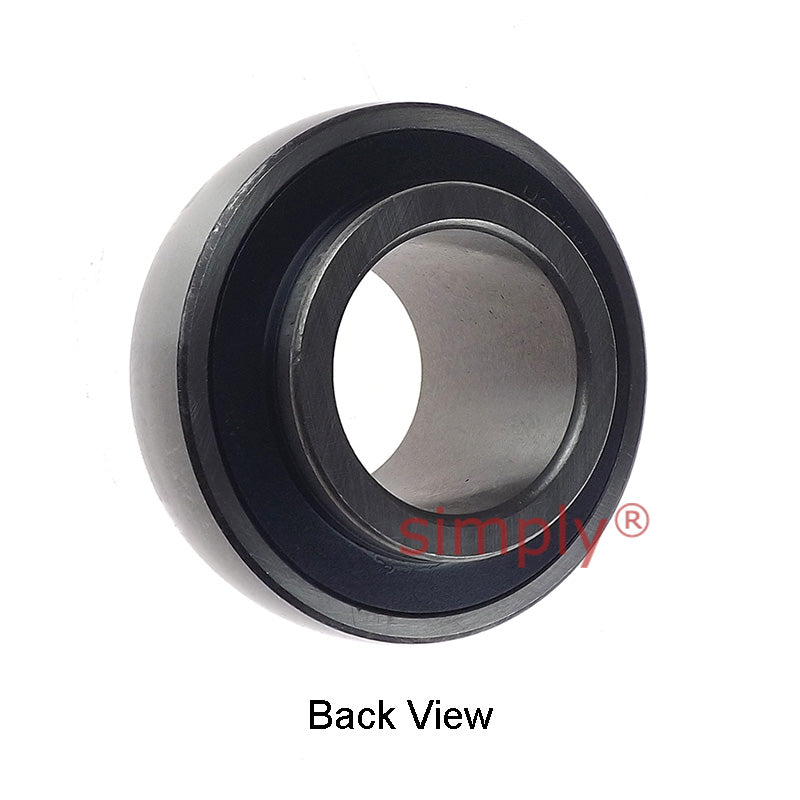

UC208-25 Imperial Bearing Insert with 1-9/16 inch Bore 80mm Outside Dia
- Regular price
- CHF 13.00 ex VAT
- Sale price
- CHF 13.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 11.57
19+
CHF 10.92
29+
CHF 10.79
39+
CHF 10.66
49+
CHF 10.53
74+
CHF 10.40
99+
CHF 9.75
199+
CHF 9.62
249+
CHF 9.49
499+
CHF 9.36
999+
CHF 9.10
SKU:
UC.208-25
UC208-25 Imperial Bearing Insert with 1-9/16 inch Bore 80mm Outside Dia
- Regular price
- CHF 13.00 ex VAT
- Sale price
- CHF 13.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 1-9/16 inch |
| D | = | 80mm |
| Bi | = | 49.2mm |
| Be | = | 21mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 8mm |
| Grub screw | = | 5/16" |
| -24 UNF | = | Weight |
| 0.65 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | N/A |
