SKU: UC.206-19

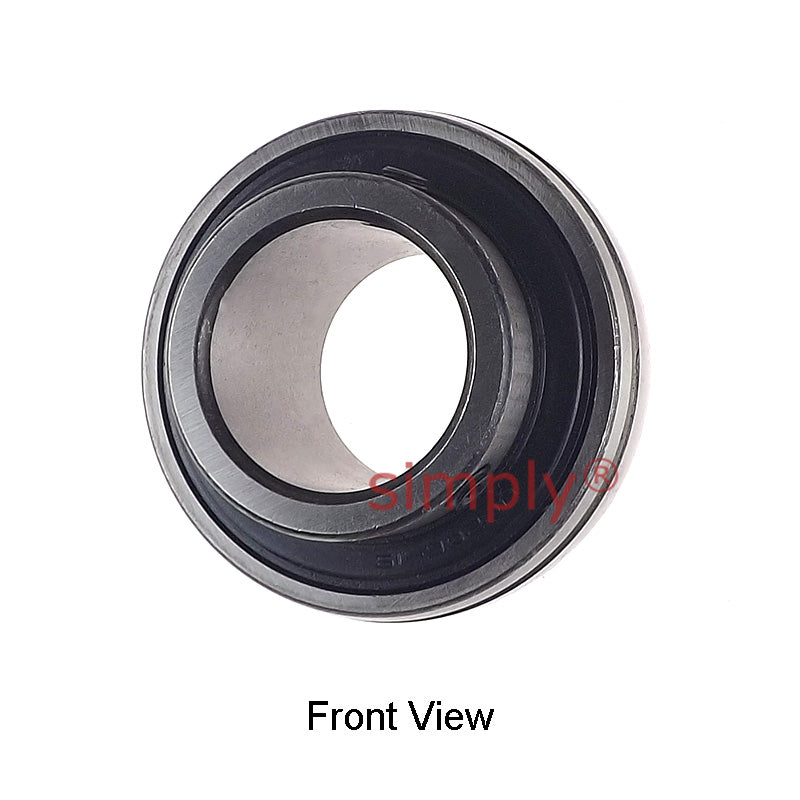

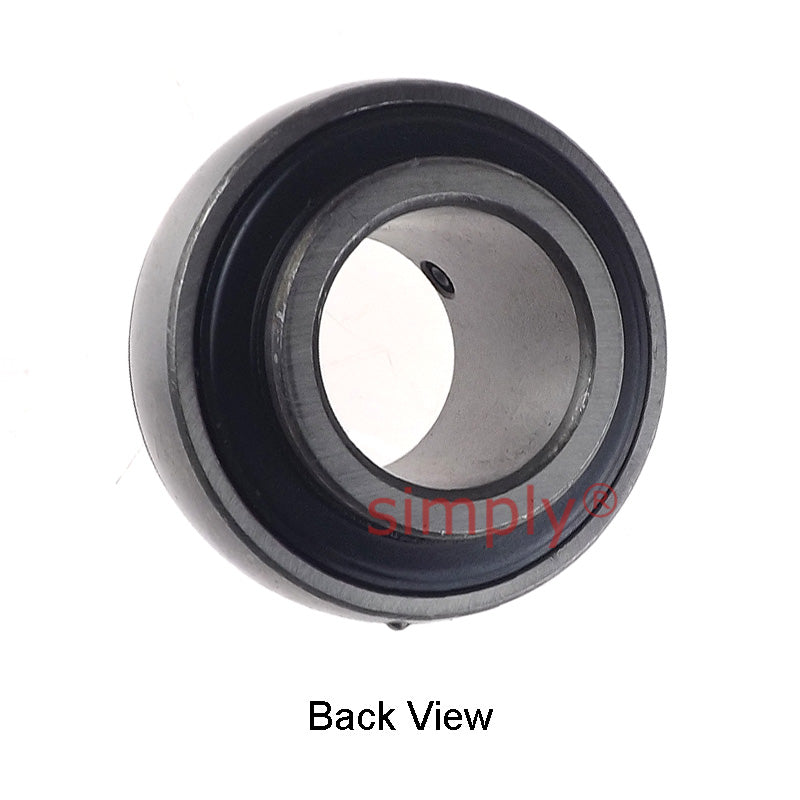

UC206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 8.01
19+
CHF 7.56
29+
CHF 7.47
39+
CHF 7.38
49+
CHF 7.29
74+
CHF 7.20
99+
CHF 6.75
199+
CHF 6.66
249+
CHF 6.57
499+
CHF 6.48
999+
CHF 6.30
SKU:
UC.206-19
UC206-19 Imperial Bearing Insert with 1-3/16 inch Bore 62mm Outside Dia
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 1-3/16 inch |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 19mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| G | = | 6mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.34 kg | = | Dynamic load |
| 1520 kgf | = | Static load |
| 1020 kgf | = | N/A |
