SKU: UC.206

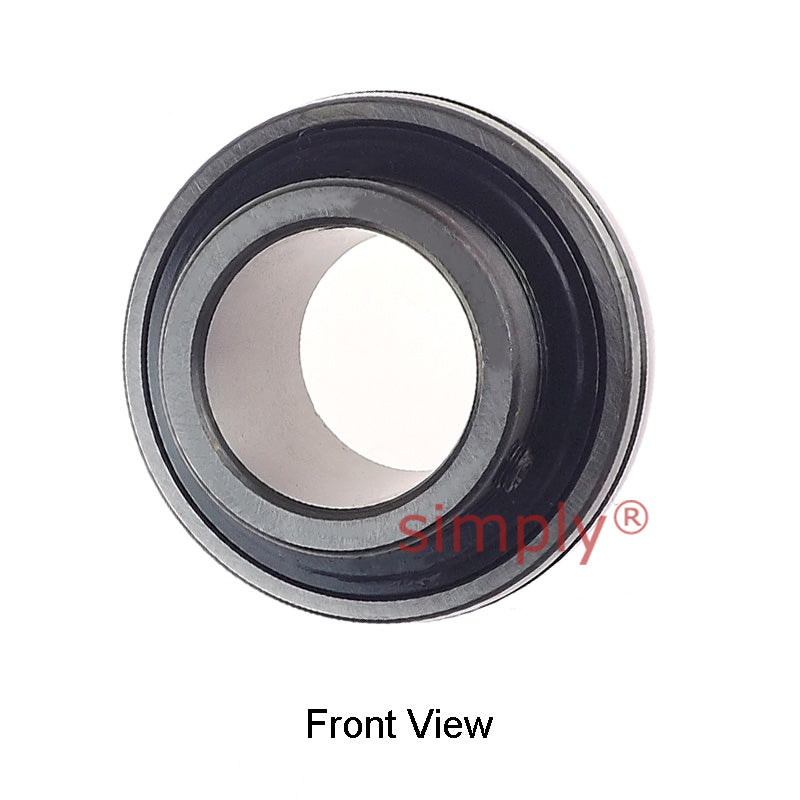

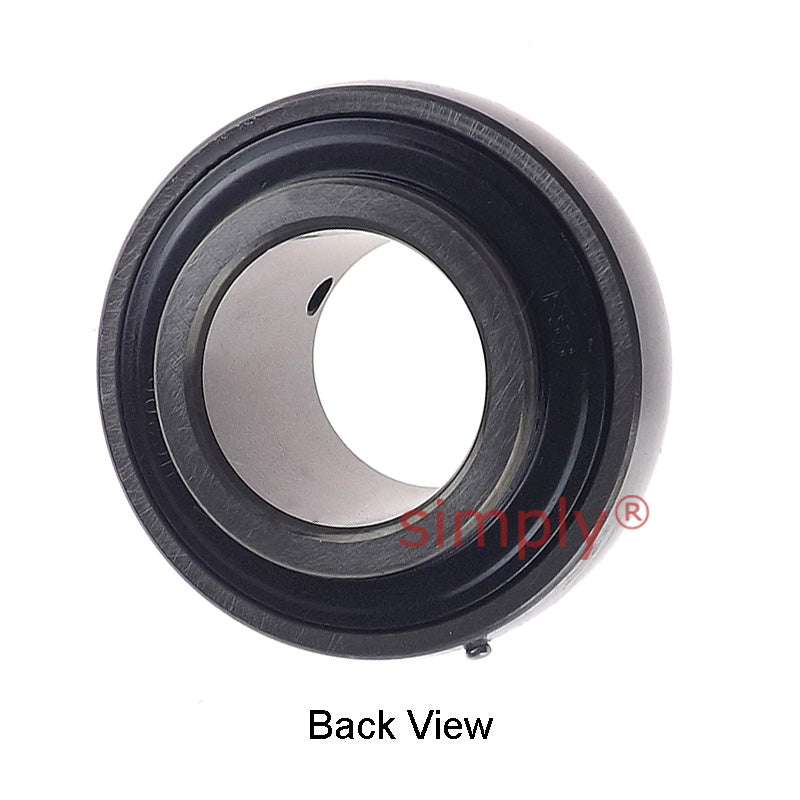

UC206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 7.12
19+
CHF 6.72
29+
CHF 6.64
39+
CHF 6.56
49+
CHF 6.48
74+
CHF 6.40
99+
CHF 6.00
199+
CHF 5.92
249+
CHF 5.84
499+
CHF 5.76
999+
CHF 5.60
SKU:
UC.206
UC206 Metric Bearing Insert with 30mm Bore 62mm Outside Dia
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 30mm |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 19mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| G | = | 6mm |
| Grub screw | = | M6x1 |
| Weight | = | 0.32 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
Downloads
Reviews
