SKU: UC.205-14

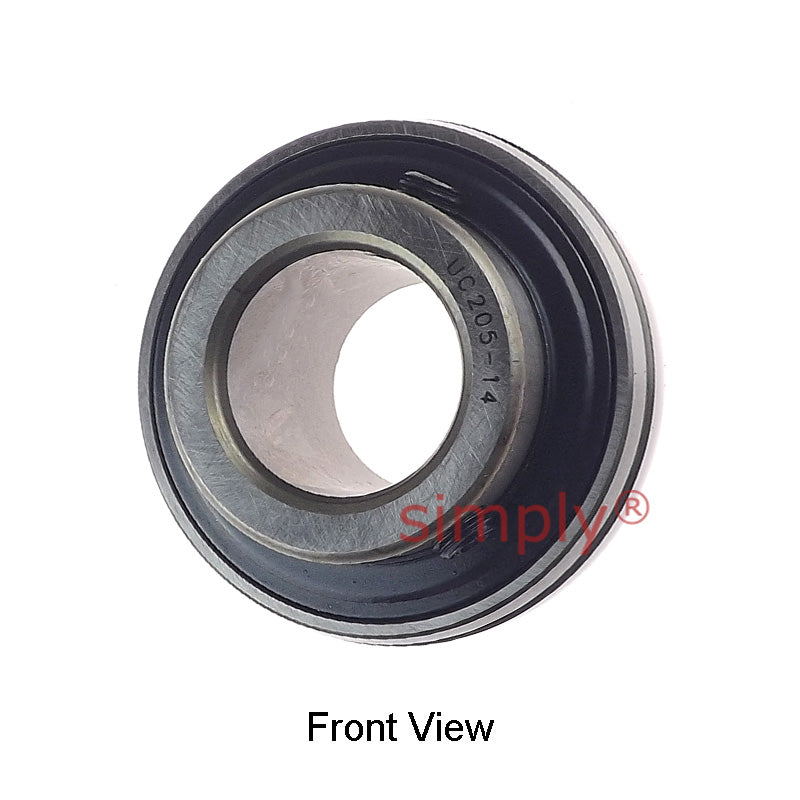

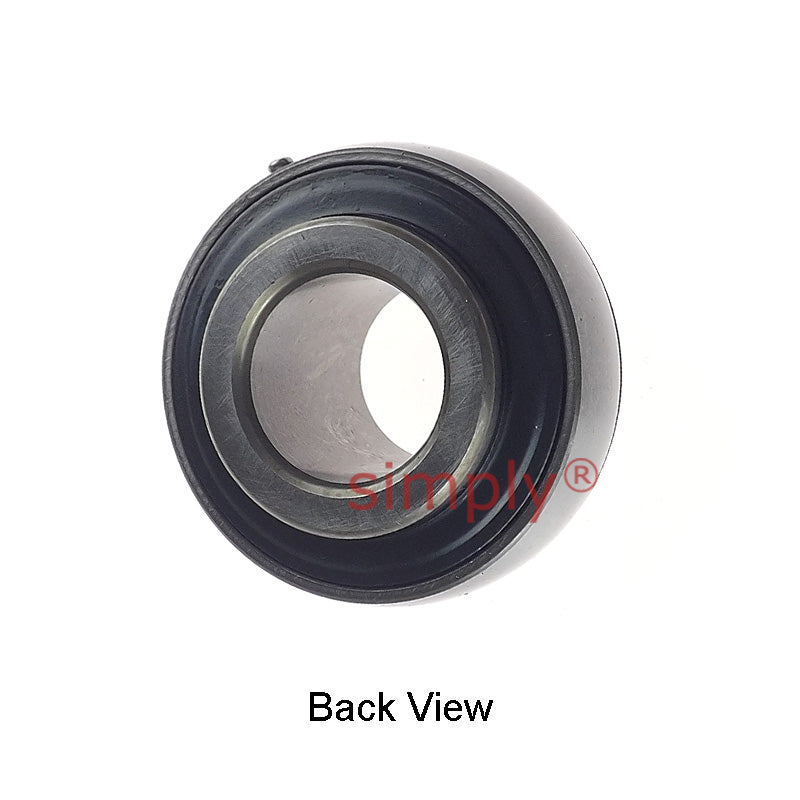

UC205-14 Imperial Bearing Insert with 7/8 inch Bore 52mm Outside Dia
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 6.23
19+
CHF 5.88
29+
CHF 5.81
39+
CHF 5.74
49+
CHF 5.67
74+
CHF 5.60
99+
CHF 5.25
199+
CHF 5.18
249+
CHF 5.11
499+
CHF 5.04
999+
CHF 4.90
SKU:
UC.205-14
UC205-14 Imperial Bearing Insert with 7/8 inch Bore 52mm Outside Dia
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 7/8 inch |
| D | = | 52mm |
| Bi | = | 34mm |
| Be | = | 17mm |
| n | = | 14.3mm |
| m | = | 19.7mm |
| G | = | 5.5mm |
| Grub screw | = | 1/4" |
| -28 UNF | = | Weight |
| 0.23 kg | = | Dynamic load |
| 1100 kgf | = | Static load |
| 710 kgf | = | Rec max speed |
| 6250 rpm | = | N/A |
