SKU: UC.204

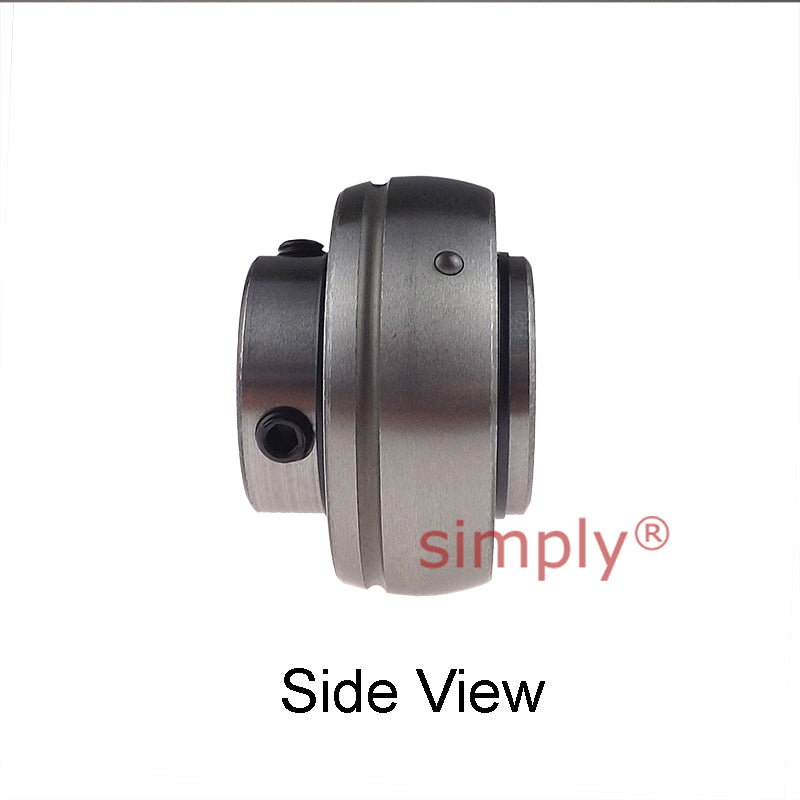

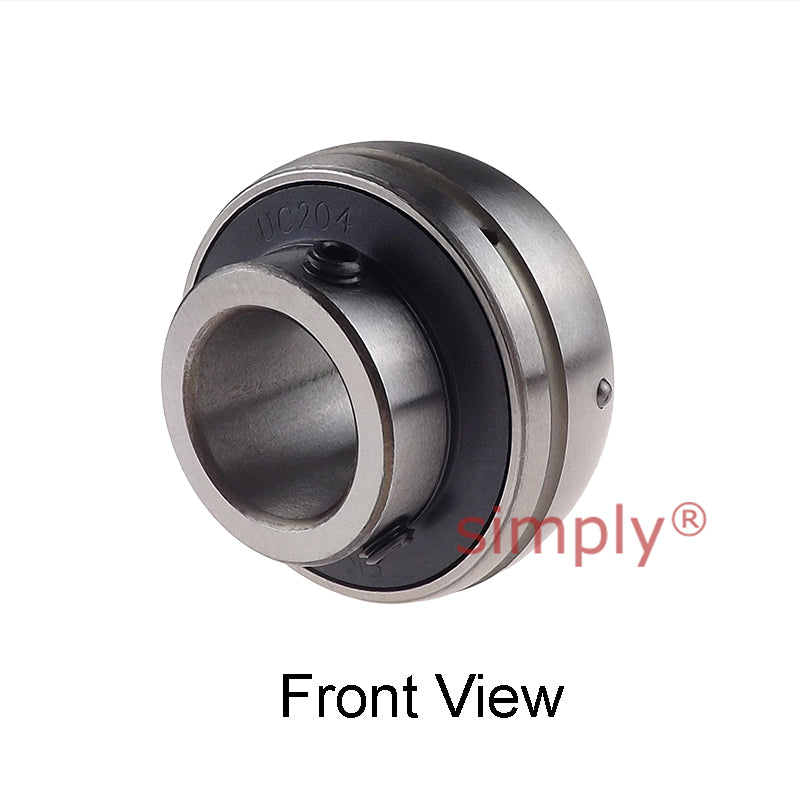

UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- CHF 6.00 ex VAT
- Sale price
- CHF 6.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 5.34
19+
CHF 5.04
29+
CHF 4.98
39+
CHF 4.92
49+
CHF 4.86
74+
CHF 4.80
99+
CHF 4.50
199+
CHF 4.44
249+
CHF 4.38
499+
CHF 4.32
999+
CHF 4.20
SKU:
UC.204
UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- CHF 6.00 ex VAT
- Sale price
- CHF 6.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 20mm |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 17mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| G | = | 4.8mm |
| Grub screw | = | M6x1 |
| Weight | = | 0.21 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Rec max speed | = | 7450 rpm |
