SKU: UC.202

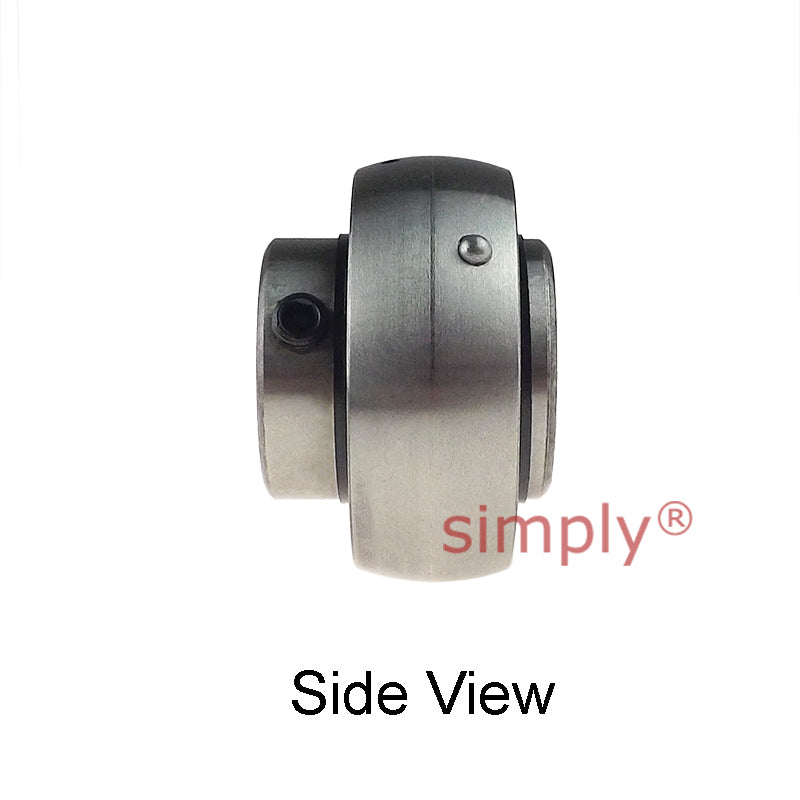

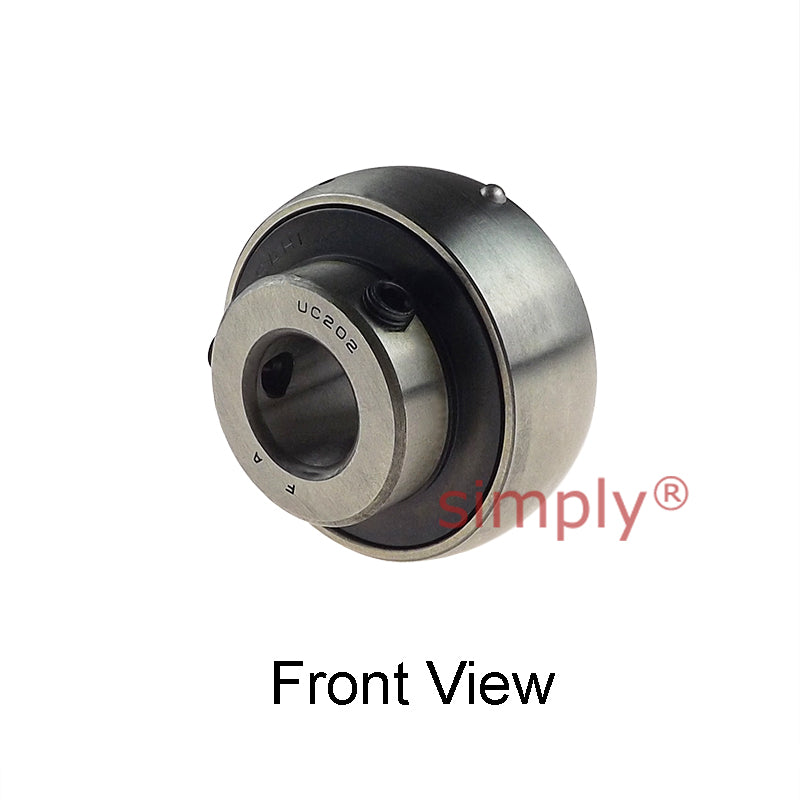

UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 8.01
19+
CHF 7.56
29+
CHF 7.47
39+
CHF 7.38
49+
CHF 7.29
74+
CHF 7.20
99+
CHF 6.75
199+
CHF 6.66
249+
CHF 6.57
499+
CHF 6.48
999+
CHF 6.30
SKU:
UC.202
UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
- Regular price
- CHF 9.00 ex VAT
- Sale price
- CHF 9.00
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 15mm |
| D | = | 47mm |
| Bi | = | 31mm |
| Be | = | 17mm |
| n | = | 12.7mm |
| m | = | 18.3mm |
| G | = | 4.8mm |
| Grub screw | = | M6x1 |
| Weight | = | 0.21 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
