SKU: U007

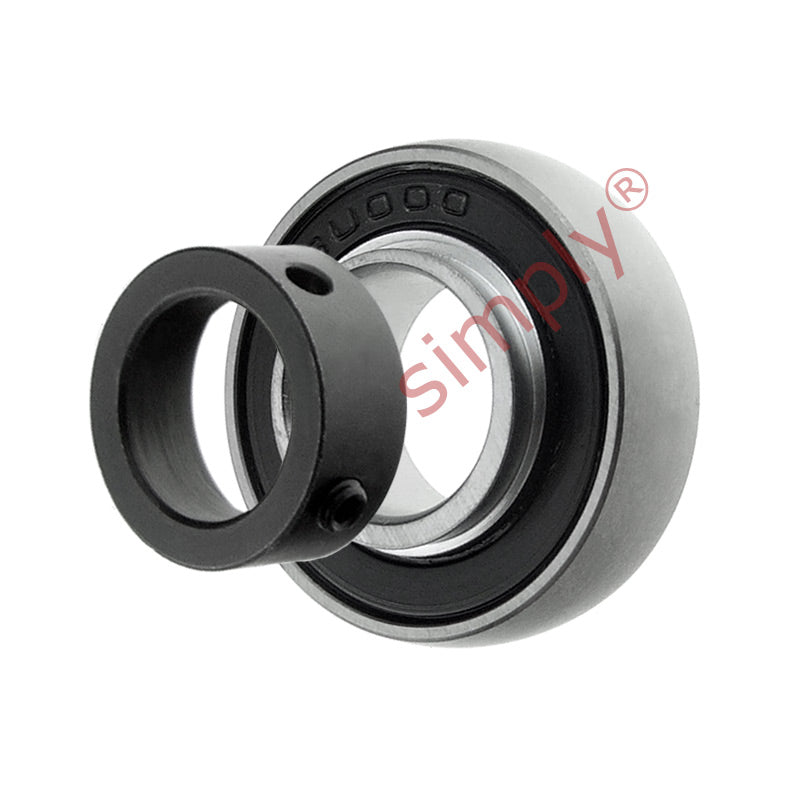

U007 Metric Eccentric Collar Type Bearing Insert with 35mm Bore 62mm Outside Dia
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 13.35
19+
CHF 12.60
29+
CHF 12.45
39+
CHF 12.30
49+
CHF 12.15
74+
CHF 12.00
99+
CHF 11.25
199+
CHF 11.10
249+
CHF 10.95
499+
CHF 10.80
999+
CHF 10.50
SKU:
U007
U007 Metric Eccentric Collar Type Bearing Insert with 35mm Bore 62mm Outside Dia
- Regular price
- CHF 15.00 ex VAT
- Sale price
- CHF 15.00
- Regular price
-
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 35mm |
| D | = | 62mm |
| L | = | 29.5mm |
| Bi | = | 20mm |
| Be | = | 14mm |
| r | = | 1.5mm |
| n | = | 7mm |
| B3 | = | 13.5mm |
| d1 | = | 48mm |
| A | = | 5mm |
| ds | = | M6x0.75 |
| Dynamic load | = | 15920 N ~ 1623.388 kgf |
| Static load | = | 10290 N ~ 1049.288 kgf |
| Weight | = | 0.232 kg |
