SKU: U006

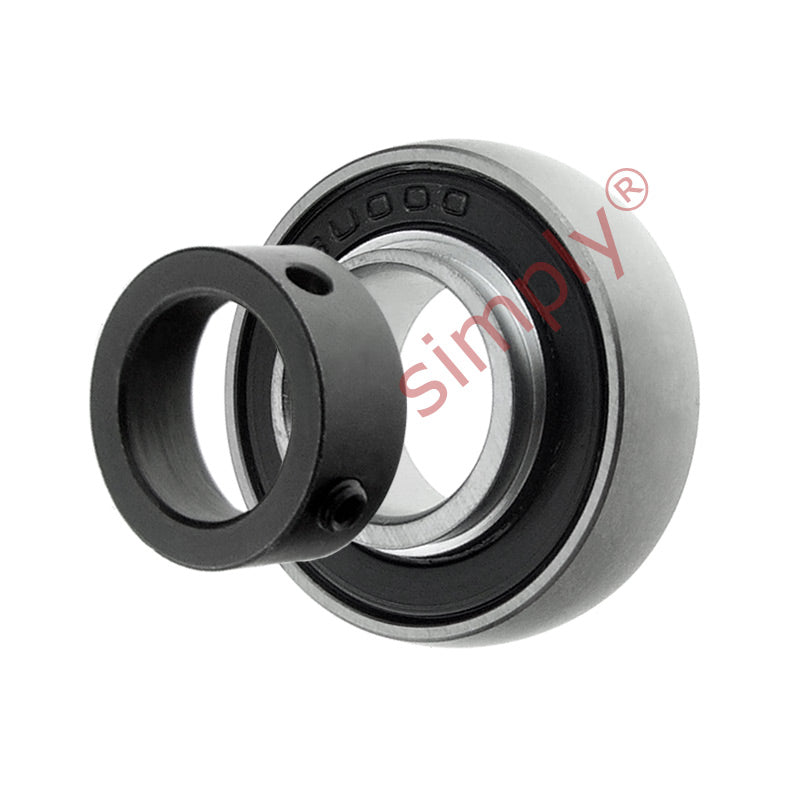

U006 Metric Eccentric Collar Type Bearing Insert with 30mm Bore 55mm Outside Dia
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 16.02
19+
CHF 15.12
29+
CHF 14.94
39+
CHF 14.76
49+
CHF 14.58
74+
CHF 14.40
99+
CHF 13.50
199+
CHF 13.32
249+
CHF 13.14
499+
CHF 12.96
999+
CHF 12.60
SKU:
U006
U006 Metric Eccentric Collar Type Bearing Insert with 30mm Bore 55mm Outside Dia
- Regular price
- CHF 18.00 ex VAT
- Sale price
- CHF 18.00
- Regular price
-
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 30mm |
| D | = | 55mm |
| L | = | 26.5mm |
| Bi | = | 18.5mm |
| Be | = | 13mm |
| r | = | 1.5mm |
| n | = | 6.5mm |
| B3 | = | 12mm |
| d1 | = | 42mm |
| A | = | 5mm |
| ds | = | M5X0.8 |
| Dynamic load | = | 13230 N ~ 1349.085 kgf |
| Static load | = | 8281 N ~ 844.427 kgf |
| Weight | = | 0.21 kg |
