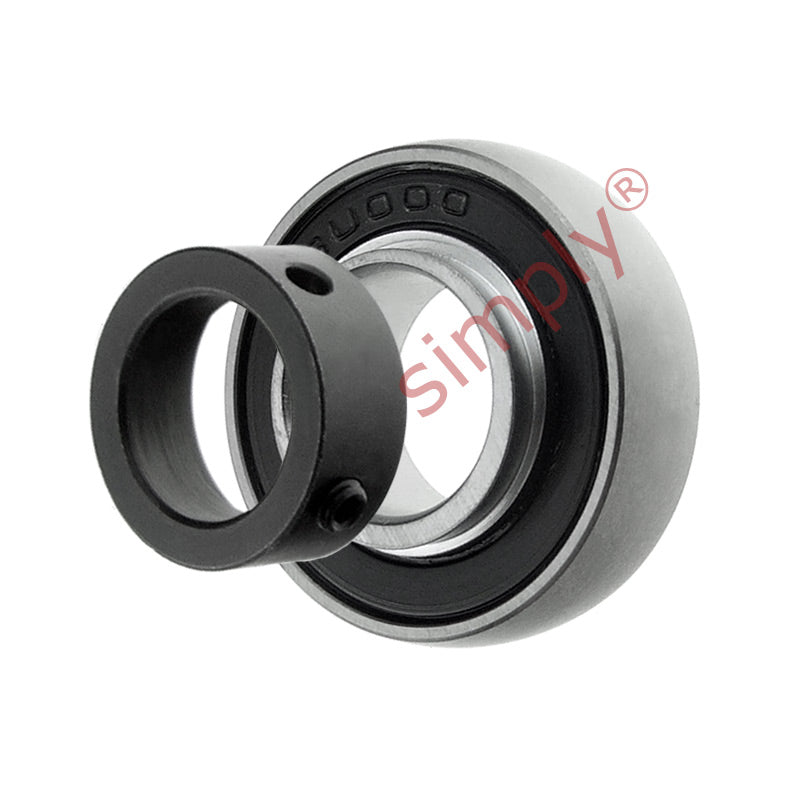

U004 Metric Eccentric Collar Type Bearing Insert with 20mm Bore 42mm Outside Dia

SKU: U004

U004 Metric Eccentric Collar Type Bearing Insert with 20mm Bore 42mm Outside Dia

CHF 13.00 ex VAT
CHF 13.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 11.57
4 CHF 10.92
9 CHF 10.79
19 CHF 10.66
49 CHF 10.53
99 CHF 10.40
499 CHF 9.75
999 CHF 9.62
1999 CHF 9.49
2999 CHF 9.36
4999 CHF 9.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
U004 Metric Eccentric Collar Type Bearing Insert with 20mm Bore 42mm Outside Dia
SKU: U004

U004 Metric Eccentric Collar Type Bearing Insert with 20mm Bore 42mm Outside Dia

CHF 13.00 ex VAT
CHF 13.00
ex VAT

Description

Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Technical

d = 20mm
D = 42mm
L = 24.5mm
Bi = 16.5mm
Be = 12mm
r = 1mm
n = 6mm
B3 = 11mm
d1 = 30mm
A = 5mm
ds = M5X0.8
Dynamic load = 9359 N ~ 954.352 kgf
Static load = 5047 N ~ 514.651 kgf
Weight = 0.11 kg
