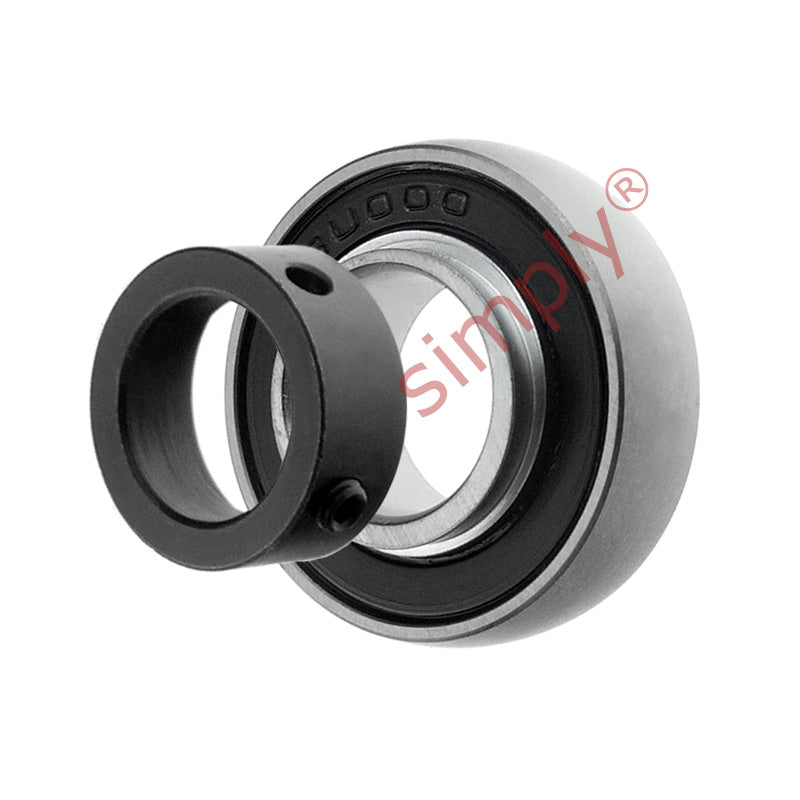

U003 Metric Eccentric Collar Type Bearing Insert with 17mm Bore 35mm Outside Dia

SKU: U003

U003 Metric Eccentric Collar Type Bearing Insert with 17mm Bore 35mm Outside Dia

CHF 13.00 ex VAT
CHF 13.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 11.57
19+ CHF 10.92
29+ CHF 10.79
39+ CHF 10.66
49+ CHF 10.53
74+ CHF 10.40
99+ CHF 9.75
199+ CHF 9.62
249+ CHF 9.49
499+ CHF 9.36
999+ CHF 9.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
U003 Metric Eccentric Collar Type Bearing Insert with 17mm Bore 35mm Outside Dia
SKU: U003

U003 Metric Eccentric Collar Type Bearing Insert with 17mm Bore 35mm Outside Dia

CHF 13.00 ex VAT
CHF 13.00
ex VAT

Description

Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Technical

d = 17mm
D = 35mm
L = 20.5mm
Bi = 13.5mm
Be = 10mm
r = 0.5mm
n = 5mm
B3 = 9.5mm
d1 = 25mm
A = 3.5mm
ds = M4X0.7
Dynamic load = 5978 N ~ 609.586 kgf
Static load = 3283 N ~ 334.773 kgf
Weight = 0.07 kg
