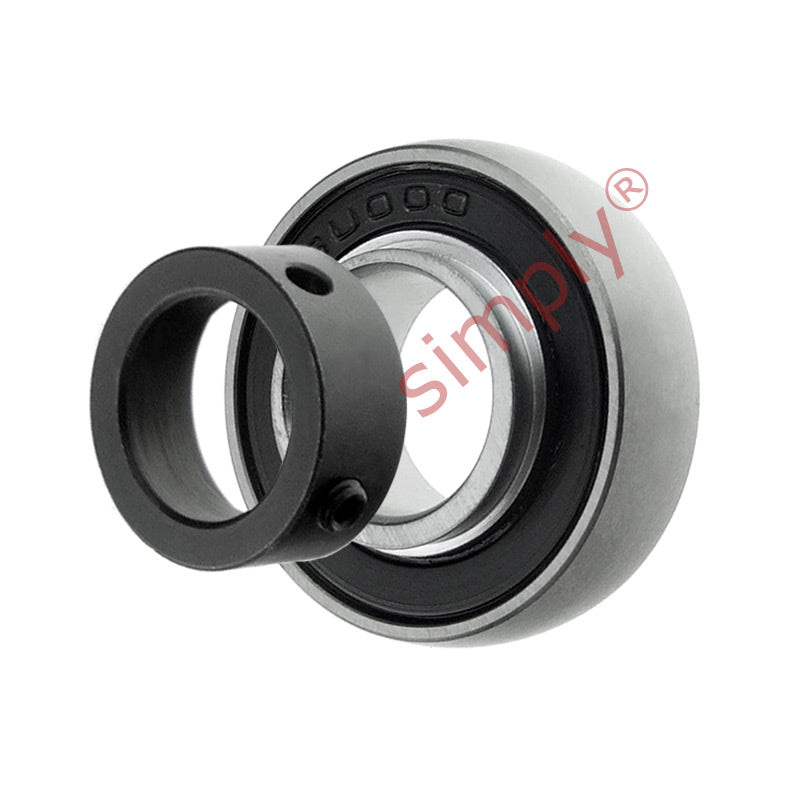

U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia

SKU: U001

U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia

CHF 9.00 ex VAT
CHF 9.00
ex VAT
In stock

Quantity Price Breaks

10+ CHF 8.01
19+ CHF 7.56
29+ CHF 7.47
39+ CHF 7.38
49+ CHF 7.29
74+ CHF 7.20
99+ CHF 6.75
199+ CHF 6.66
249+ CHF 6.57
499+ CHF 6.48
999+ CHF 6.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia
SKU: U001

U001 Metric Eccentric Collar Type Bearing Insert with 12mm Bore 28mm Outside Dia

CHF 9.00 ex VAT
CHF 9.00
ex VAT

Description

Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing.
Benefits: Cost effective bearing insert, locking collar and grub screw fixing, secure shaft fixing

Technical

d = 12mm
D = 28mm
L = 17.5mm
Bi = 11mm
Be = 8mm
r = 0.5mm
n = 4mm
B3 = 8.5mm
d1 = 19mm
A = 3.5mm
ds = M4X0.7
Dynamic load = 5096 N ~ 519.647 kgf
Static load = 2401 N ~ 244.834 kgf
Weight = 0.04 kg
