SKU: U000

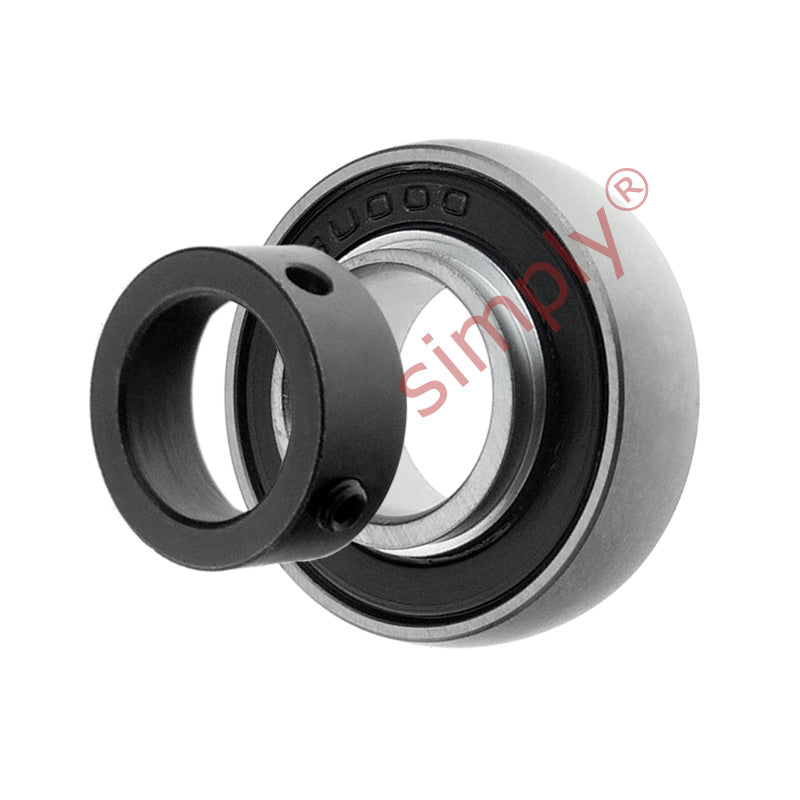

U000 Metric Eccentric Collar Type Bearing Insert with 10mm Bore 26mm Outside Dia
- Regular price
- CHF 10.00 ex VAT
- Sale price
- CHF 10.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 8.90
19+
CHF 8.40
29+
CHF 8.30
39+
CHF 8.20
49+
CHF 8.10
74+
CHF 8.00
99+
CHF 7.50
199+
CHF 7.40
249+
CHF 7.30
499+
CHF 7.20
999+
CHF 7.00
SKU:
U000
U000 Metric Eccentric Collar Type Bearing Insert with 10mm Bore 26mm Outside Dia
- Regular price
- CHF 10.00 ex VAT
- Sale price
- CHF 10.00
- Regular price
-
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 10mm |
| D | = | 26mm |
| L | = | 17.5mm |
| Bi | = | 11mm |
| Be | = | 8mm |
| r | = | 0.5mm |
| n | = | 4mm |
| B3 | = | 8.5mm |
| d1 | = | 17mm |
| A | = | 3.5mm |
| ds | = | M4X0.7 |
| Dynamic load | = | 4606 N ~ 469.681 kgf |
| Static load | = | 1906 N ~ 194.358 kgf |
| Weight | = | 0.03 kg |
