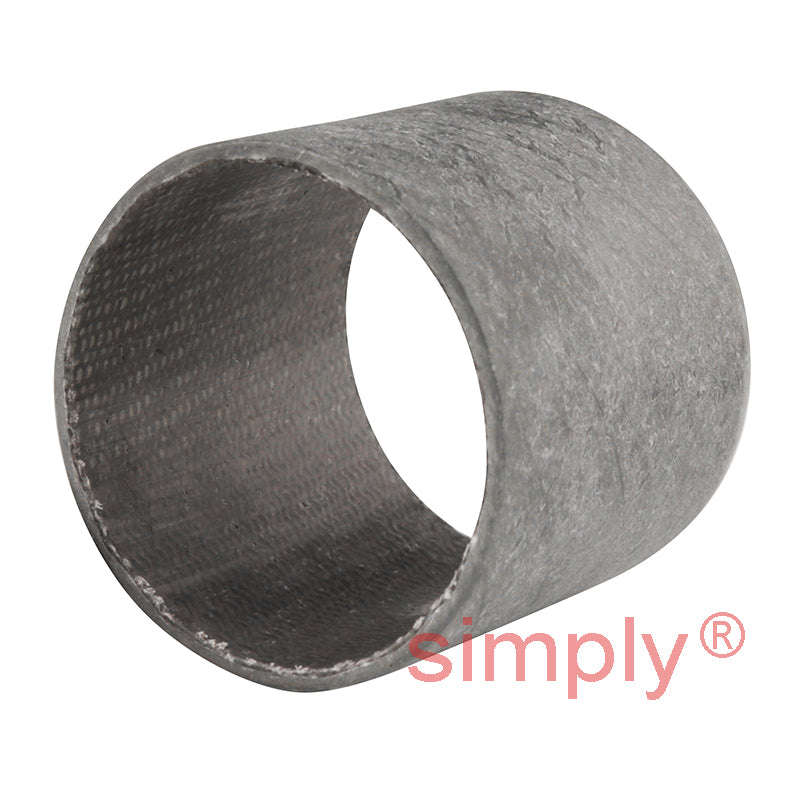

Igus igutex TX1SM160180150 Metric Filament Wound Plain Bush 160x180x150mm - Allow 2-3 Days

SKU: TX1SM-160180-150

Igus igutex TX1SM160180150 Metric Filament Wound Plain Bush 160x180x150mm - Allow 2-3 Days

CHF 362.00 ex VAT
CHF 362.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 322.18
9 CHF 304.08
19 CHF 300.46
29 CHF 296.84
39 CHF 293.22
49 CHF 289.60
99 CHF 271.50
199 CHF 267.88
249 CHF 264.26
499 CHF 260.64
999 CHF 253.40
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Igus igutex TX1SM160180150 Metric Filament Wound Plain Bush 160x180x150mm - Allow 2-3 Days
SKU: TX1SM-160180-150

Igus igutex TX1SM160180150 Metric Filament Wound Plain Bush 160x180x150mm - Allow 2-3 Days

CHF 362.00 ex VAT
CHF 362.00
ex VAT

Description

IGUS igutex TX1 Filament Wound Bushing: TX1 Bushings are self-lubricating, heavy-duty bearings made from a unique combination of mineral materials, synthetic resins, and additives, bonded under high pressure and temperature to create durable composite fibre plain bearings. The tough fibreglass fabric outer layer protects an inner layer designed to minimize friction and wear. These bushings consist of two layers: a gliding layer, constructed from filament fabric with integrated solid lubricants, guarantees maintenance-free operation with very low friction. The base layer, fortified with resilient filament fabrics, offers excellent protection to the inner layer optimized for sliding performance. TX1 plain bearings represent very high load capacity, up to 200MPa in a static environment and up to 140MPa in a dynamic environment.
Benefits: High load carrying capacity, corrosion-resistant, excellent electrical insulator, maintenance and lubrication-free

Technical

Inside Diameter (d) = 160mm
Outside Diameter (D) = 180mm
Width (B) = 150mm
