SKU: TS-N1/2SE15/18-DUN

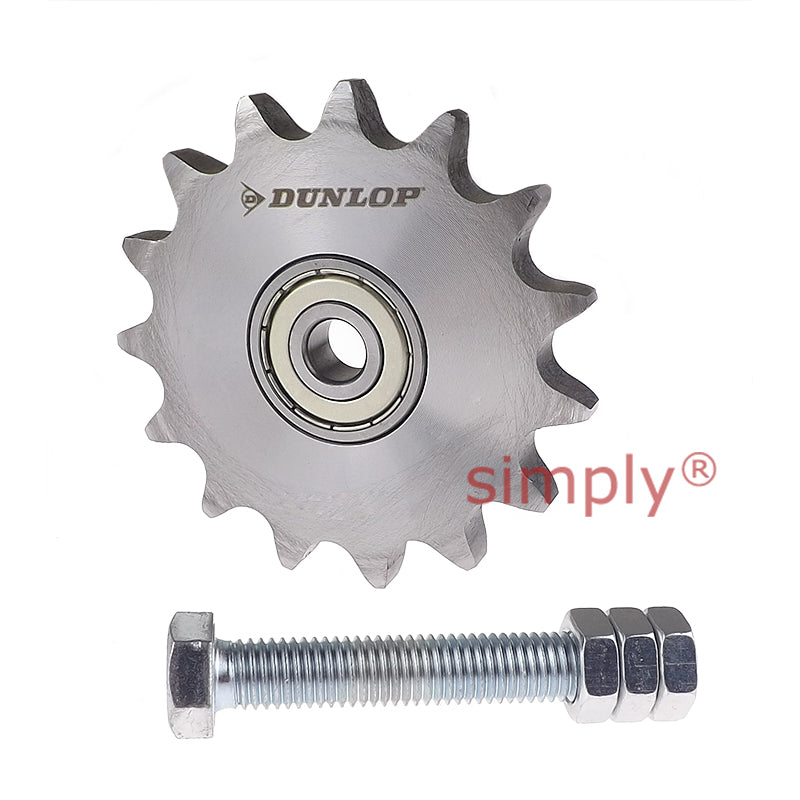

Dunlop 08BX15T N1/2 inch Sprocket for SE15/18 Tension Arm
- Regular price
- CHF 14.00 ex VAT
- Sale price
- CHF 14.00
- Regular price
-
Not in stock
Quantity Price Breaks
3
CHF 12.46
5
CHF 11.76
9
CHF 11.62
19
CHF 11.48
49
CHF 11.34
74
CHF 11.20
99
CHF 10.50
199
CHF 10.36
249
CHF 10.22
499
CHF 10.08
999
CHF 9.80
SKU:
TS-N1/2SE15/18-DUN
Dunlop 08BX15T N1/2 inch Sprocket for SE15/18 Tension Arm
- Regular price
- CHF 14.00 ex VAT
- Sale price
- CHF 14.00
- Regular price
-
Description
Dunlop Tension Sprocket: The idler sprocket set is designed as a tensioning element for applications in chain drives. The idler sprocket runs on a self-lubricating ball bearing Type 2Z. We have a range of idler sprockets to suit standard roller chain pitch sizes from O6B-1 to 24B-1.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | N1/2 inch |
| No of Teeth | = | 15 |
| W | = | M10mm |
| L | = | 55mm |
| A | = | 10mm |
| B | = | 7.2mm |
| C | = | 9mm |
| D | = | 61.08mm |
| Torque Hex Nut 0.5d | = | 20 Nm |
| Adjusting Range Track R | = | 23-44mm |
| Size SE | = | 18 |
| To Fit Roller Chain ANSI | = | 40 |
| To Fit Roller Chain DIN 8187 | = | ISO 08 B |
