TL22-L-050F - 3/8 inch Pitch 22 Tooth Flanged Tapered Bore Steel Timing Pulley for 1/2 inch Wide Belts

SKU: TL22-L-050F

TL22-L-050F - 3/8 inch Pitch 22 Tooth Flanged Tapered Bore Steel Timing Pulley for 1/2 inch Wide Belts

CHF 18.00 ex VAT
CHF 18.00
ex VAT
Equivalent to: TL22L050F
Not in stock

Quantity Price Breaks

3 CHF 16.02
5 CHF 15.12
9 CHF 14.94
19 CHF 14.76
49 CHF 14.58
74 CHF 14.40
99 CHF 13.50
199 CHF 13.32
249 CHF 13.14
499 CHF 12.96
999 CHF 12.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
TL22-L-050F - 3/8 inch Pitch 22 Tooth Flanged Tapered Bore Steel Timing Pulley for 1/2 inch Wide Belts
SKU: TL22-L-050F

TL22-L-050F - 3/8 inch Pitch 22 Tooth Flanged Tapered Bore Steel Timing Pulley for 1/2 inch Wide Belts

CHF 18.00 ex VAT
CHF 18.00
ex VAT

Description

Imperial Taper Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

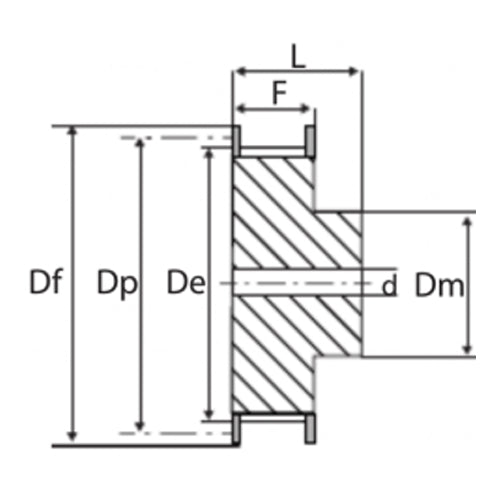

Technical

No. teeth = 22
Dp = 66.7mm
De = 65.94mm
Df = 75mm
Dm = 51mm
F = 19mm
No. flanges = 2
Material = Steel
Bore = Tapered Bore
Belt Width = 12.7mm = 0.5 (1/2) inch
Pitch = 9.53mm = 0.375 (3/8) inch
S = 22mm
R = 3mm
Bush = 1108
