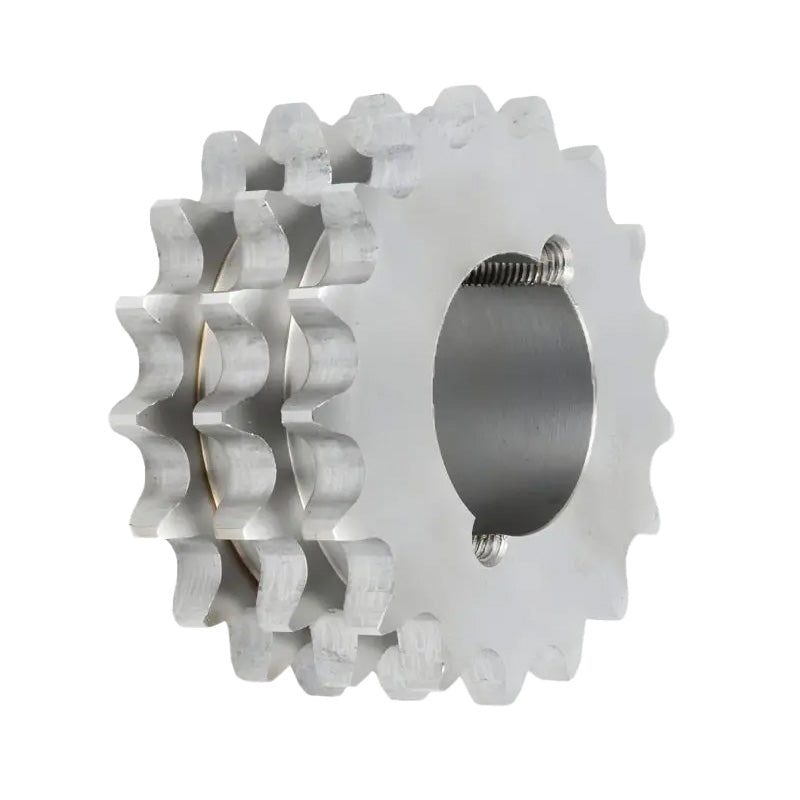

21 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

SKU: TBS-T-06B-21

21 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

CHF 19.00 ex VAT
CHF 19.00
ex VAT
Equivalent to: TS33-21 06B3 TS31-21 33-21
In stock

Quantity Price Breaks

5 CHF 16.91
9 CHF 15.96
19 CHF 15.77
29 CHF 15.58
49 CHF 15.39
74 CHF 15.20
99 CHF 14.25
199 CHF 14.06
249 CHF 13.87
499 CHF 13.68
999 CHF 13.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
21 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
SKU: TBS-T-06B-21

21 Tooth 06B Triplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

CHF 19.00 ex VAT
CHF 19.00
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

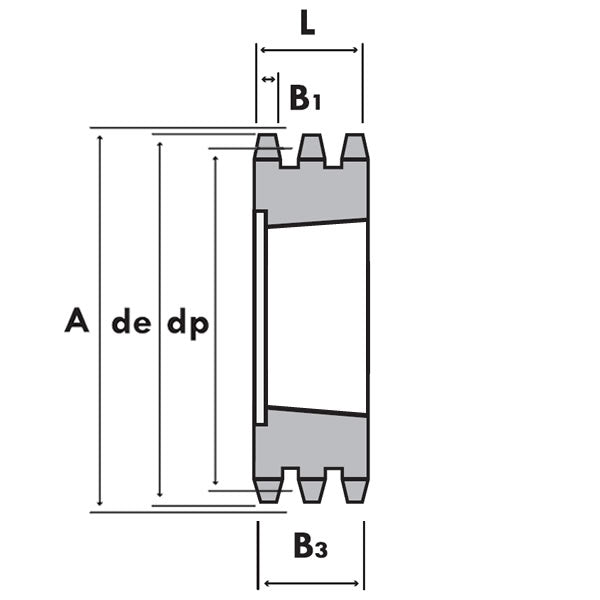

Technical

Tooth Radius r3 = 10mm
Chamfer c = 1mm
Tooth Width b1 = 5.2mm
Tooth Width B1 = 5.3mm
Tooth Width B2 = 15.4mm
Tooth Width B3 = 25.6mm
Pitch = 9.525mm
Width Between Inner = 5.72mm
Roller Diameter = 6.35mm
No. of Teeth = 21
Outer Diameter de = 68mm
Pitch Diameter dp = 63.91mm
Length Through Bore A = 25.6mm
Reference = 33-21
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1008+tapered+locking+bush> = 1008 Click Here<
/a> =
