SKU: TBS-DS-10B-23

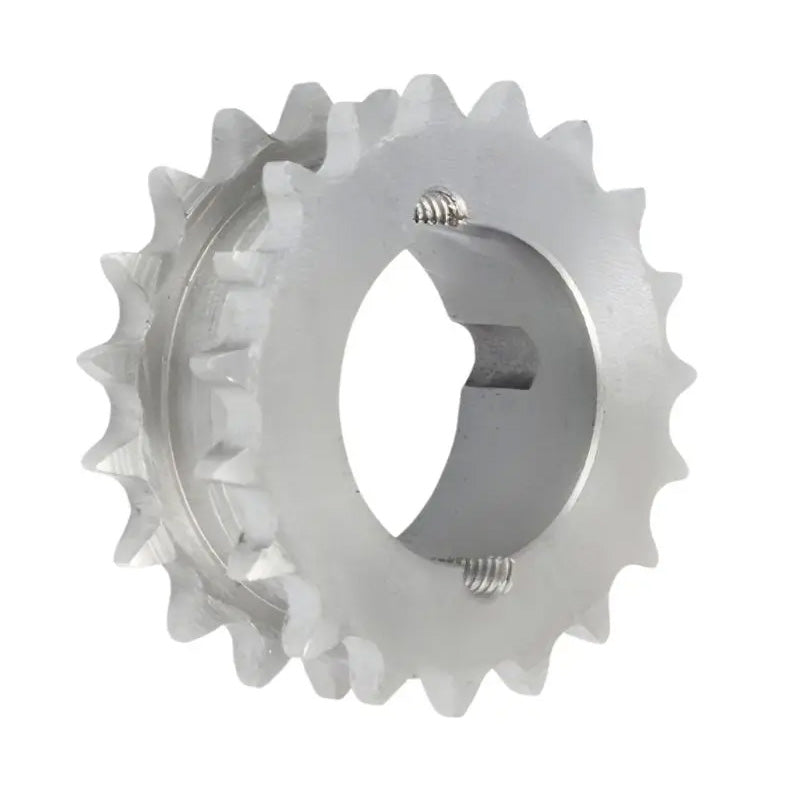

23 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- CHF 47.00 ex VAT
- Sale price
- CHF 47.00
- Regular price
-
Not in stock
Quantity Price Breaks
5
CHF 41.83
9
CHF 39.48
19
CHF 39.01
29
CHF 38.54
49
CHF 38.07
74
CHF 37.60
99
CHF 35.25
199
CHF 34.78
249
CHF 34.31
499
CHF 33.84
999
CHF 32.90
SKU:
TBS-DS-10B-23
23 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- CHF 47.00 ex VAT
- Sale price
- CHF 47.00
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

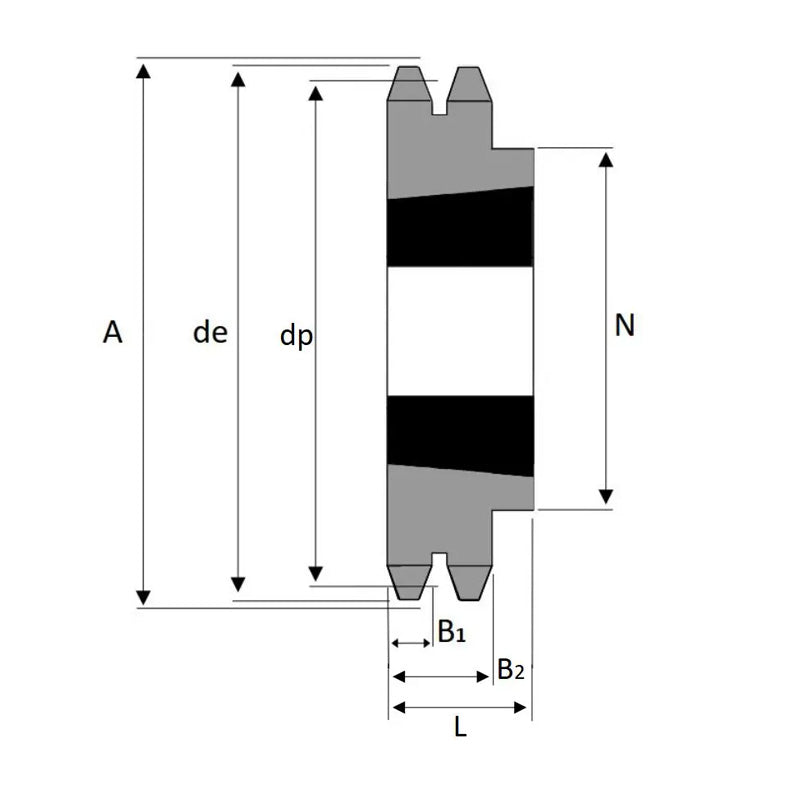

Technical
| No. of Teeth | = | 23 |
| Pitch Diameter dp | = | 116.58mm |
| Outer Diameter de | = | 123.4mm |
| Hub Diameter N | = | 100mm |
| Width B | = | 36.5mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=2012+taperlock" | = | > |
| 2012< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 1.183 kg | = | N/A |
