SKU: TBS-D-10B-23

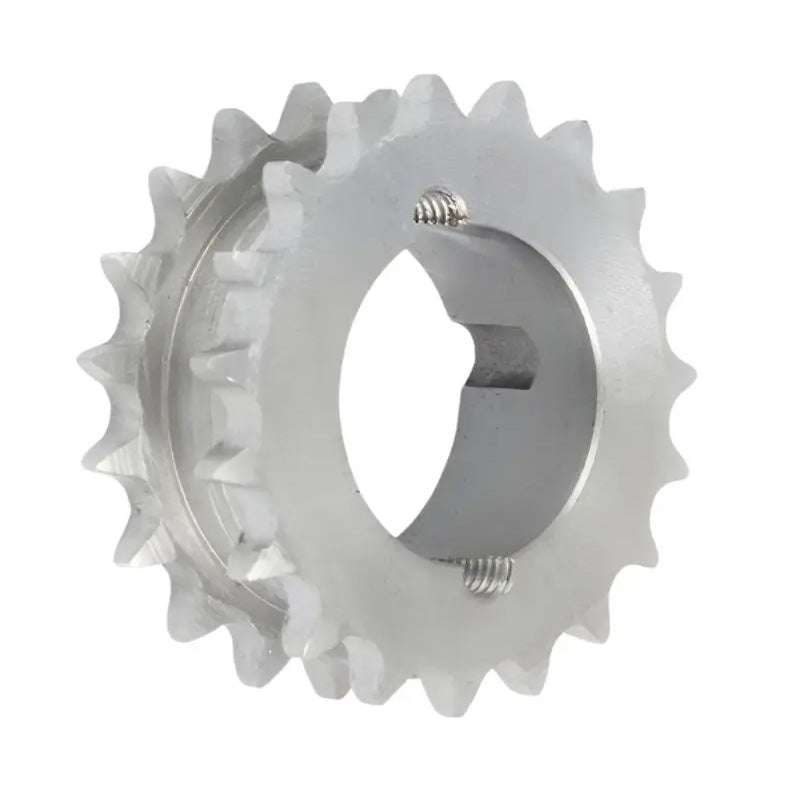

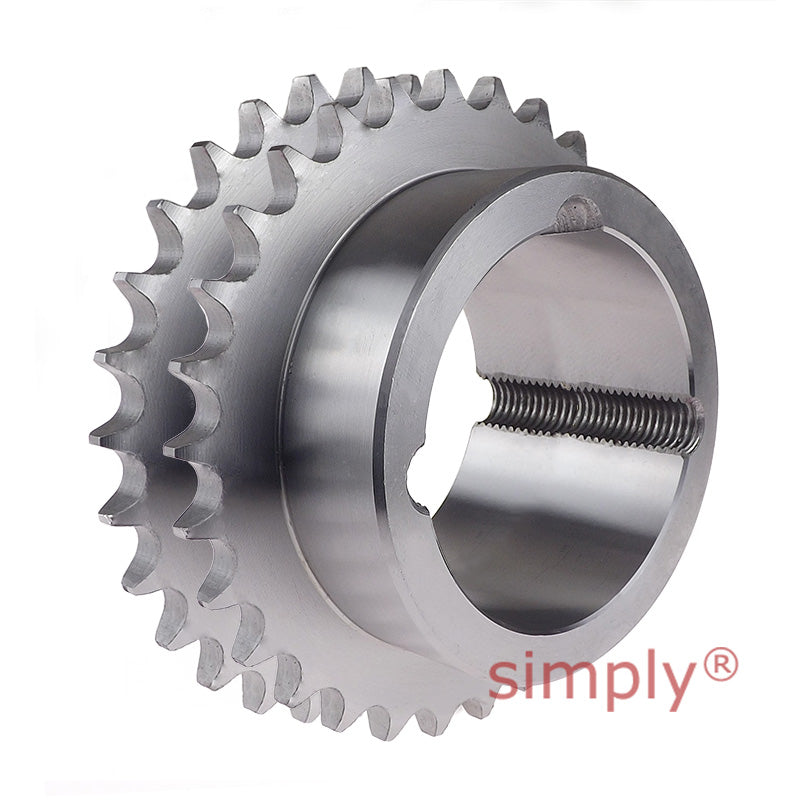

23 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- CHF 34.00 ex VAT
- Sale price
- CHF 34.00
- Regular price
-
In stock
Quantity Price Breaks
5
CHF 30.26
9
CHF 28.56
19
CHF 28.22
29
CHF 27.88
49
CHF 27.54
74
CHF 27.20
99
CHF 25.50
199
CHF 25.16
249
CHF 24.82
499
CHF 24.48
999
CHF 23.80
SKU:
TBS-D-10B-23
23 Tooth 10B Duplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- CHF 34.00 ex VAT
- Sale price
- CHF 34.00
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

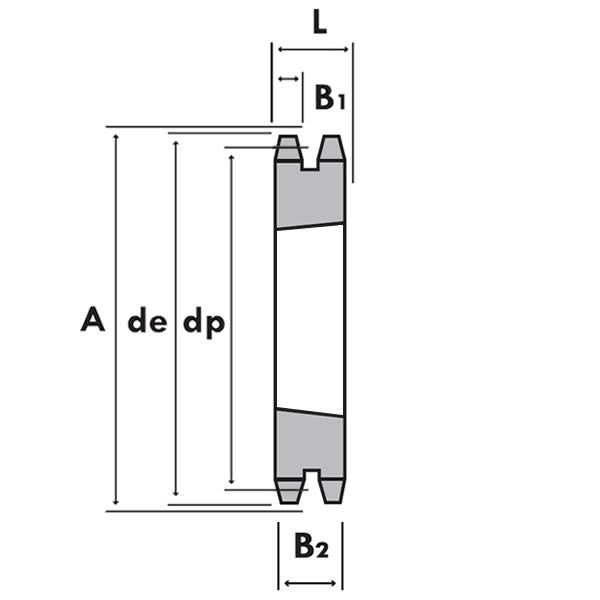

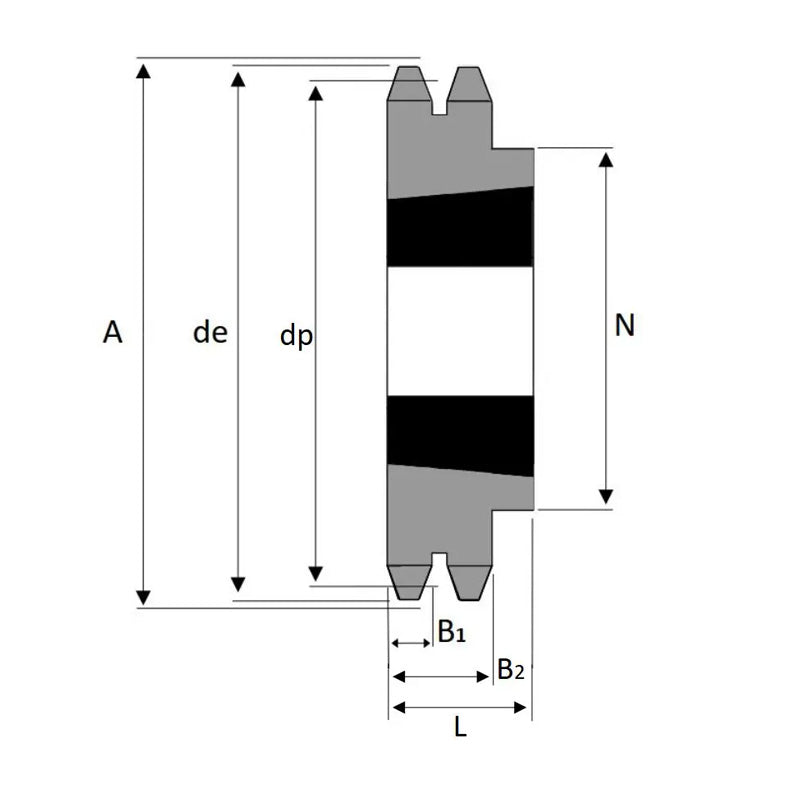

Technical
| Tooth Radius r3 | = | 16mm |
| Chamfer c | = | 1.6mm |
| Tooth Width b1 | = | 9mm |
| Tooth Width B1 | = | 9.1mm |
| Tooth Width B2 | = | 25.5mm |
| Tooth Width B3 | = | 42.1mm |
| Pitch | = | 15.875mm |
| Width Between Inner | = | 9.65mm |
| Roller Diameter | = | 10.16mm |
| No. of Teeth | = | 23 |
| Outer Diameter de | = | 123.4mm |
| Pitch Diameter dp | = | 116.58mm |
| Length Through Bore A | = | 25.5mm |
| Reference | = | 52-23 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1610+tapered+locking+bush> | = | 1610 Click Here< |
| /a> | = |
