27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

SKU: TBS-D-08B-27

27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

CHF 27.00 ex VAT
CHF 27.00
ex VAT
Equivalent to: TS42-27 08B2 TS41-27 41-27
In stock

Quantity Price Breaks

5 CHF 24.03
9 CHF 22.68
19 CHF 22.41
29 CHF 22.14
49 CHF 21.87
74 CHF 21.60
99 CHF 20.25
199 CHF 19.98
249 CHF 19.71
499 CHF 19.44
999 CHF 18.90
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
SKU: TBS-D-08B-27

27 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

CHF 27.00 ex VAT
CHF 27.00
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

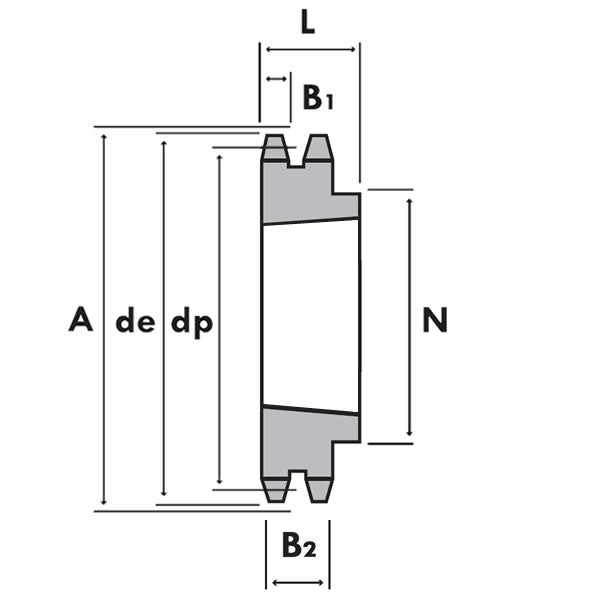

Technical

Tooth Radius r3 = 13mm
Chamfer c = 1.3mm
Tooth Width b1 = 7mm
Tooth Width B1 = 7.2mm
Tooth Width B2 = 21mm
Tooth Width B3 = 34.9mm
Pitch = 12.7mm
Width Between Inner = 7.75mm
Roller Diameter = 8.51mm
No. of Teeth = 27
Outer Diameter de = 114mm
Pitch Diameter dp = 109.4mm
Hub Diameter dm = 87mm
Length Through Bore A = 32mm
Reference = 42-27
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2012+tapered+locking+bush> = 2012 Click Here<
/a> =
