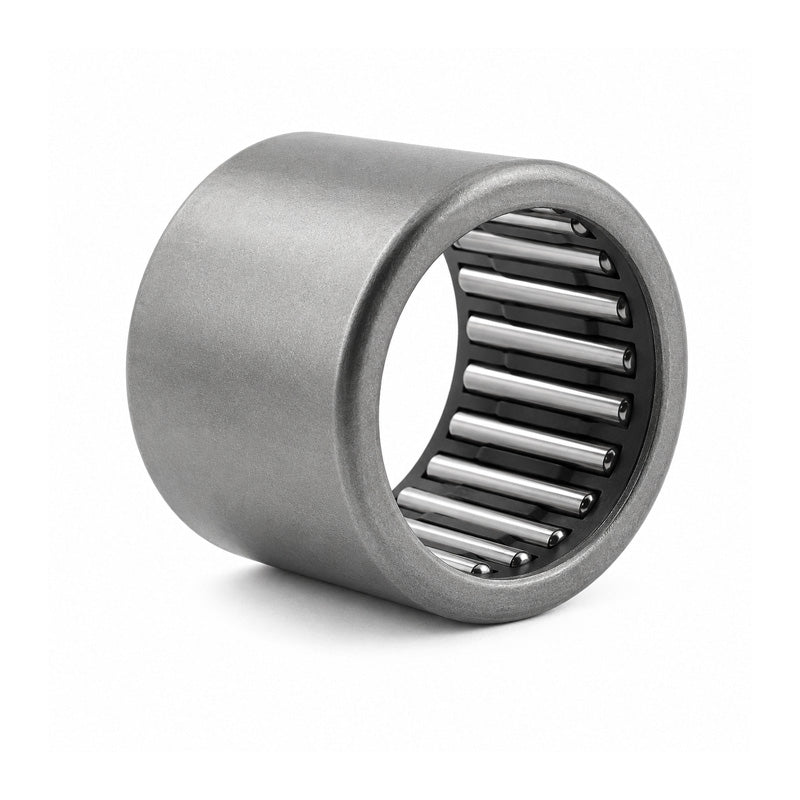

Premier Budget TA912Z Needle Roller Bearing Open End Type 9x16x12mm

SKU: TA.912.Z-EU

Premier Budget TA912Z Needle Roller Bearing Open End Type 9x16x12mm

CHF 8.00 ex VAT
CHF 8.00
ex VAT
Equivalent to: HMK0912 HMK912
Not in stock

Quantity Price Breaks

10 CHF 7.12
19 CHF 6.72
29 CHF 6.64
39 CHF 6.56
49 CHF 6.48
74 CHF 6.40
99 CHF 6.00
199 CHF 5.92
249 CHF 5.84
499 CHF 5.76
999 CHF 5.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Premier Budget TA912Z Needle Roller Bearing Open End Type 9x16x12mm
SKU: TA.912.Z-EU

Premier Budget TA912Z Needle Roller Bearing Open End Type 9x16x12mm

CHF 8.00 ex VAT
CHF 8.00
ex VAT

Description

Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

Technical

Fw = 9mm
D = 16mm
C = 12mm
Dynamic load = 5140N
Static load = 4880N
Weight = 8.7g
