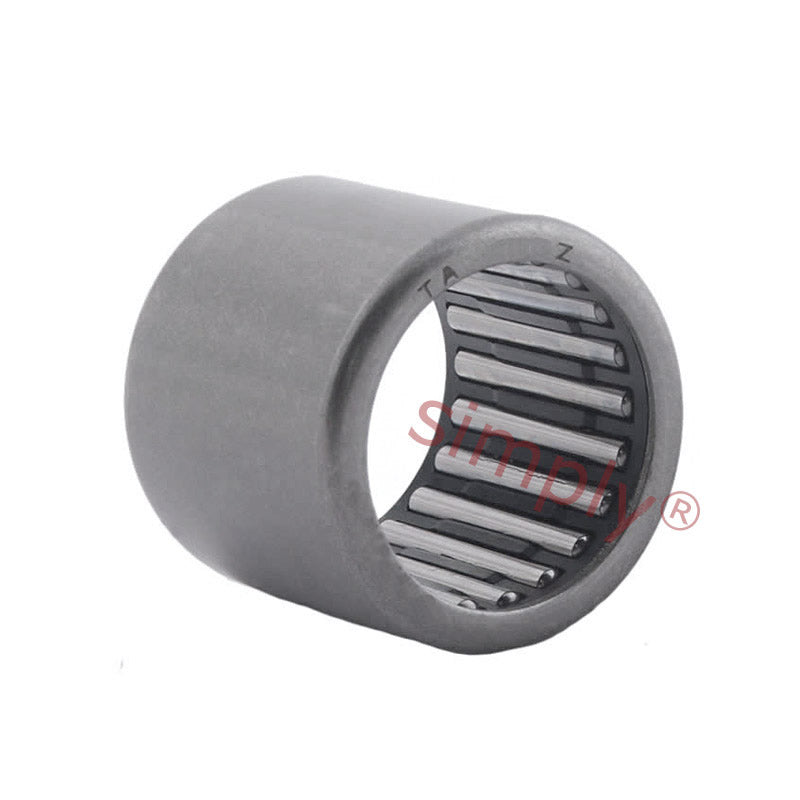

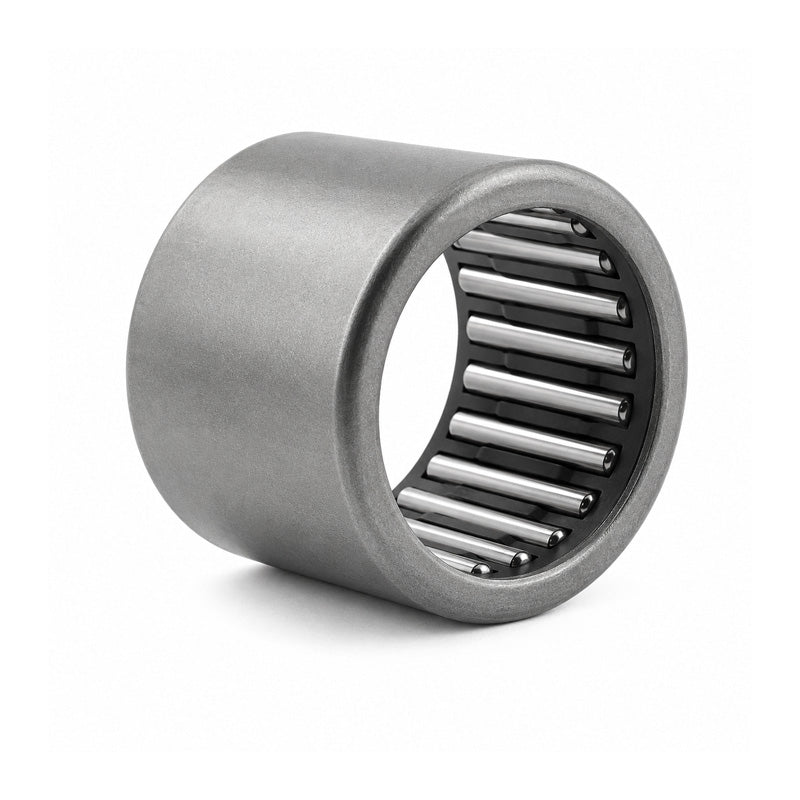

Premier Budget TA4015Z Needle Roller Bearing Open End Type 40x50x15mm

SKU: TA.4015.Z-EU

Premier Budget TA4015Z Needle Roller Bearing Open End Type 40x50x15mm

CHF 11.00 ex VAT
CHF 11.00
ex VAT
Equivalent to: HMK4015
Not in stock

Quantity Price Breaks

10 CHF 9.79
19 CHF 9.24
29 CHF 9.13
39 CHF 9.02
49 CHF 8.91
74 CHF 8.80
99 CHF 8.25
199 CHF 8.14
249 CHF 8.03
499 CHF 7.92
999 CHF 7.70
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Premier Budget TA4015Z Needle Roller Bearing Open End Type 40x50x15mm
SKU: TA.4015.Z-EU

Premier Budget TA4015Z Needle Roller Bearing Open End Type 40x50x15mm

CHF 11.00 ex VAT
CHF 11.00
ex VAT

Description

Premier Quality Budget TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

Technical

Fw = 40mm
D = 50mm
C = 15mm
Dynamic load = 19500N
Static load = 29400N
Inner race = IRT3515
Weight = 149g
