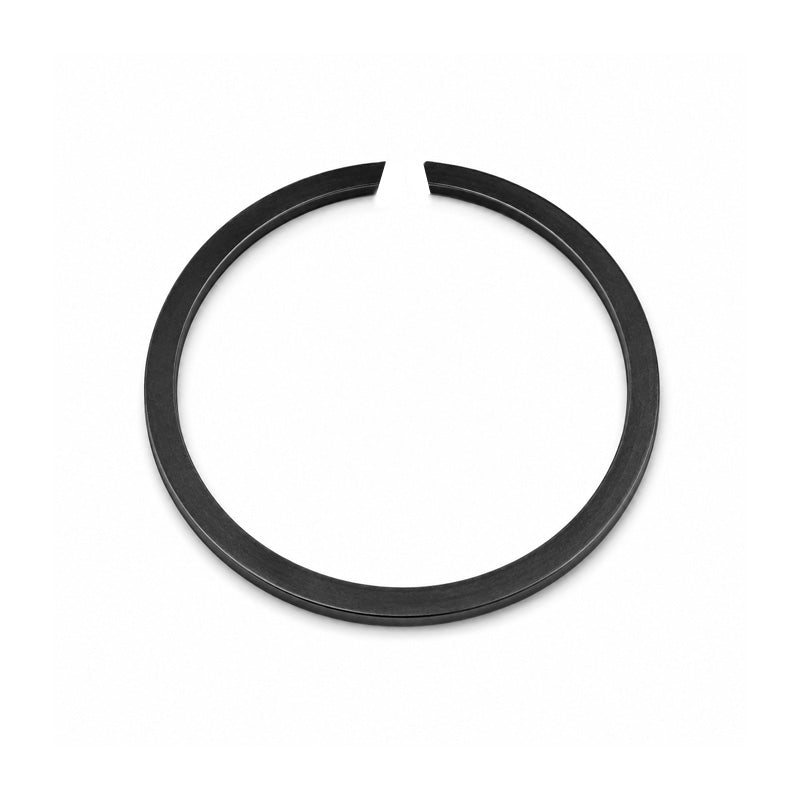

SW68 Snap Ring to Suit 68mm Shaft

SKU: SW68-M2400

SW68 Snap Ring to Suit 68mm Shaft

CHF 2.00 ex VAT
CHF 2.00
ex VAT
Equivalent to: DIN5417 DIN 5417 CFS68 CFS-68 2400-68 SW68 SW-68 M2400-68
In stock

Quantity Price Breaks

5+ CHF 1.40
10+ CHF 1.20
20+ CHF 1.10
50+ CHF 1.00
100+ CHF 0.80
500+ CHF 0.70
1000+ CHF 0.60
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
SW68 Snap Ring to Suit 68mm Shaft
SKU: SW68-M2400

SW68 Snap Ring to Suit 68mm Shaft

CHF 2.00 ex VAT
CHF 2.00
ex VAT

Description

Flat Wire Snap Rings for Shafts: These retainers are designed to fit into a groove in the shaft. Once fitted into the groove the part of the ring protruding from the groove serves to hold an assembly in place.
The snap rings are made from SAE 1065 carbon steel hardened to HRC 40-52

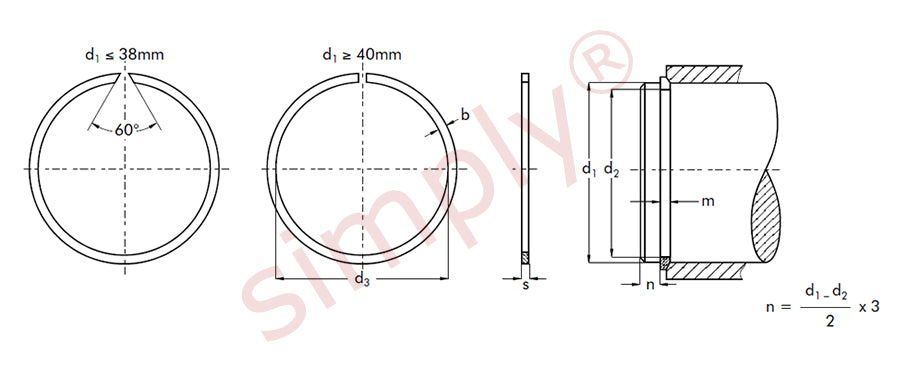

Technical

d1 = 68mm
s = 2mm (Tolerance -0.1)
b = 2.8mm (Tolerance -0.1)
d3 max. = 65.4mm
d2 = 66.2mm (Tolerance - 0.19)
m min. = 2.2mm
FN = 31.7 kN
FR = 39.6 kN
n det x1000 = 3 rpm
