SKU: SUCF.PL.209-26

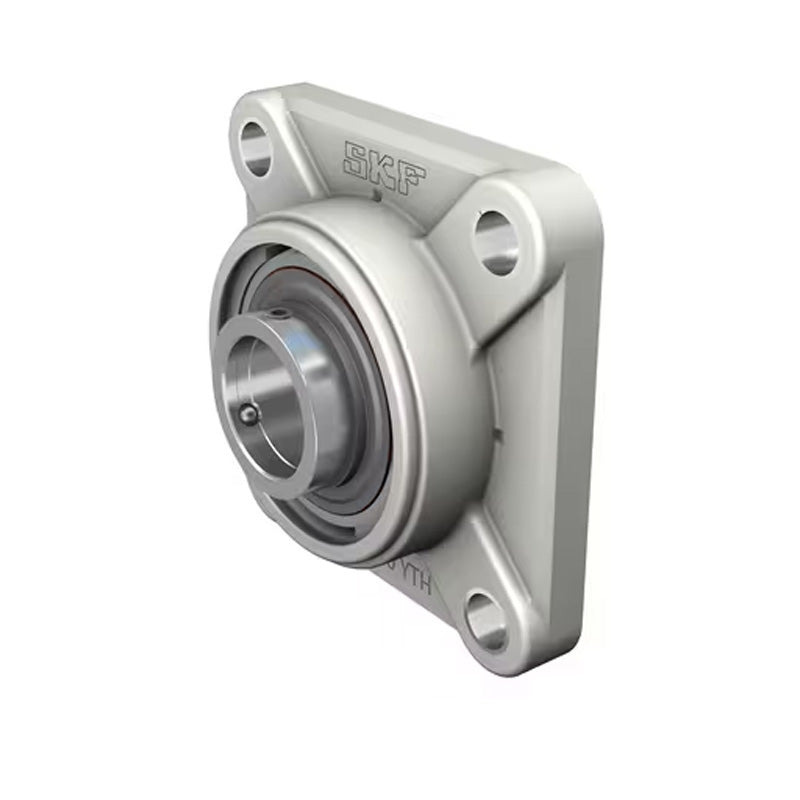

SUCFPL209-26 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-5/8 inch Bore Stainless Insert
- Regular price
- CHF 85.00 ex VAT
- Sale price
- CHF 85.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 75.65
19+
CHF 71.40
29+
CHF 70.55
39+
CHF 69.70
49+
CHF 68.85
74+
CHF 68.00
99+
CHF 63.75
199+
CHF 62.90
249+
CHF 62.05
499+
CHF 61.20
999+
CHF 59.50
SKU:
SUCF.PL.209-26
SUCFPL209-26 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-5/8 inch Bore Stainless Insert
- Regular price
- CHF 85.00 ex VAT
- Sale price
- CHF 85.00
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 1-5/8 inch |
| a | = | 137mm |
| e | = | 105mm |
| i | = | 22mm |
| g | = | 18mm |
| L | = | 38mm |
| S | = | 16mm |
| Z | = | 52.2mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Bolt | = | 14mm |
| Weight | = | 2.3 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Temperature Range | = | -35 to 102 deg C |
