SKU: SUCF.PL.207-20

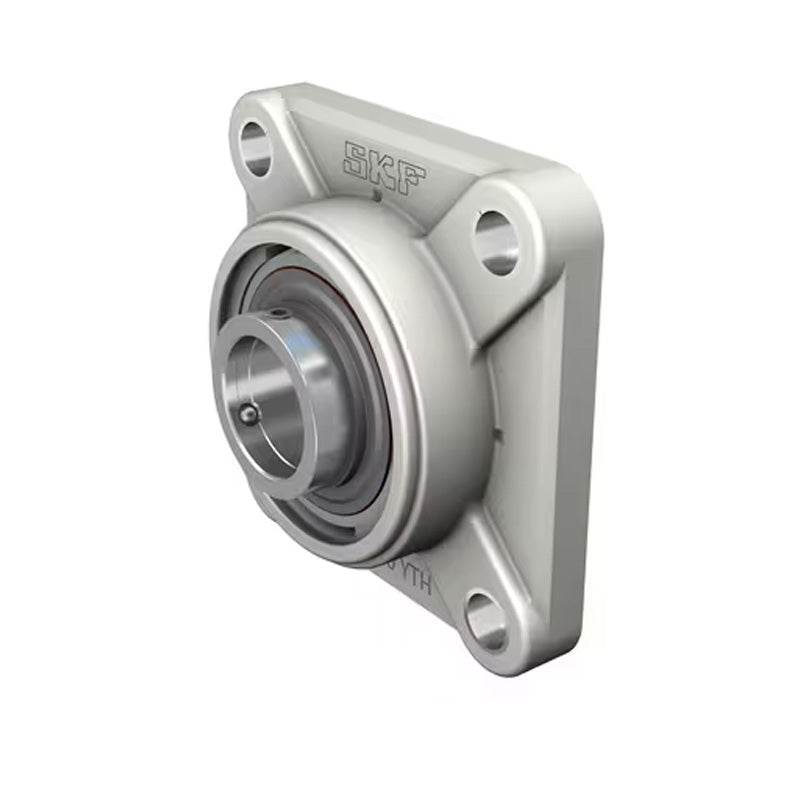

SUCFPL207-20 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 44.50
19+
CHF 42.00
29+
CHF 41.50
39+
CHF 41.00
49+
CHF 40.50
74+
CHF 40.00
99+
CHF 37.50
199+
CHF 37.00
249+
CHF 36.50
499+
CHF 36.00
999+
CHF 35.00
SKU:
SUCF.PL.207-20
SUCFPL207-20 Imperial Four Bolt Square Thermo Plastic Flange Housing with 1-1/4 inch Bore Stainless Insert
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 1-1/4 inch |
| a | = | 117mm |
| e | = | 92mm |
| i | = | 19mm |
| g | = | 16mm |
| L | = | 34mm |
| S | = | 14mm |
| Z | = | 44.4mm |
| Bi | = | 42.9mm |
| n | = | 17.5mm |
| Bolt | = | 12mm |
| Weight | = | 1.5 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
| Temperature Range | = | -35 to 102 deg C |
