SKU: SUCF.PL.207

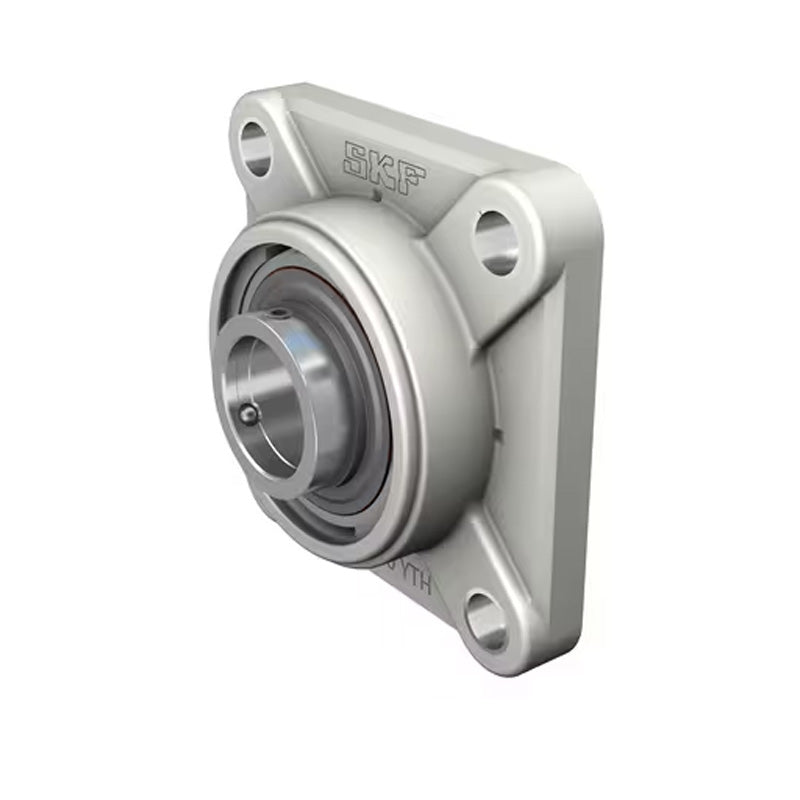

SUCFPL207 Metric Four Bolt Square Thermo Plastic Flange Housing with 35mm Bore Stainless Insert
- Regular price
- CHF 39.00 ex VAT
- Sale price
- CHF 39.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 34.71
19+
CHF 32.76
29+
CHF 32.37
39+
CHF 31.98
49+
CHF 31.59
74+
CHF 31.20
99+
CHF 29.25
199+
CHF 28.86
249+
CHF 28.47
499+
CHF 28.08
999+
CHF 27.30
SKU:
SUCF.PL.207
SUCFPL207 Metric Four Bolt Square Thermo Plastic Flange Housing with 35mm Bore Stainless Insert
- Regular price
- CHF 39.00 ex VAT
- Sale price
- CHF 39.00
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 35mm |
| a | = | 117mm |
| e | = | 92mm |
| i | = | 19mm |
| g | = | 16mm |
| L | = | 34mm |
| S | = | 14mm |
| Z | = | 44.4mm |
| Bi | = | 42.9mm |
| n | = | 17.5mm |
| Bolt | = | 12mm |
| Weight | = | 1.5 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
| Temperature Range | = | -35 to 102 deg C |
