SKU: SUCF.PL.206

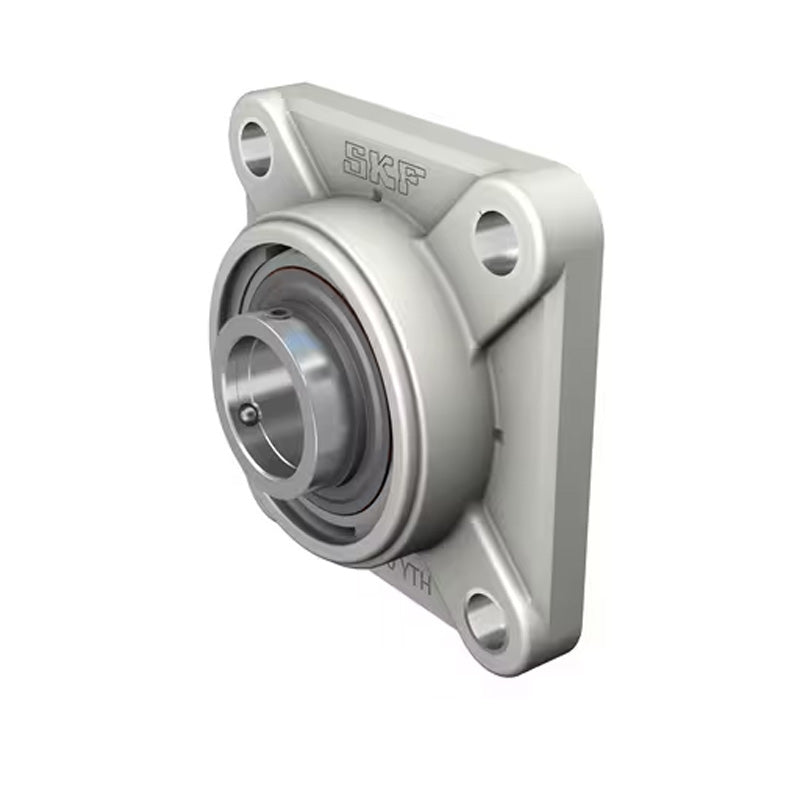

SUCFPL206 Metric Four Bolt Square Thermo Plastic Flange Housing with 30mm Bore Stainless Insert
- Regular price
- CHF 59.00 ex VAT
- Sale price
- CHF 59.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 52.51
19+
CHF 49.56
29+
CHF 48.97
39+
CHF 48.38
49+
CHF 47.79
74+
CHF 47.20
99+
CHF 44.25
199+
CHF 43.66
249+
CHF 43.07
499+
CHF 42.48
999+
CHF 41.30
SKU:
SUCF.PL.206
SUCFPL206 Metric Four Bolt Square Thermo Plastic Flange Housing with 30mm Bore Stainless Insert
- Regular price
- CHF 59.00 ex VAT
- Sale price
- CHF 59.00
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 30mm |
| a | = | 108mm |
| e | = | 83mm |
| i | = | 18mm |
| g | = | 14mm |
| L | = | 31mm |
| S | = | 12mm |
| Z | = | 40.2mm |
| Bi | = | 38.1mm |
| n | = | 15.9mm |
| Bolt | = | 10mm |
| Weight | = | 1.1 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Temperature Range | = | -35 to 102 deg C |
