SKU: SSUCP.211-32

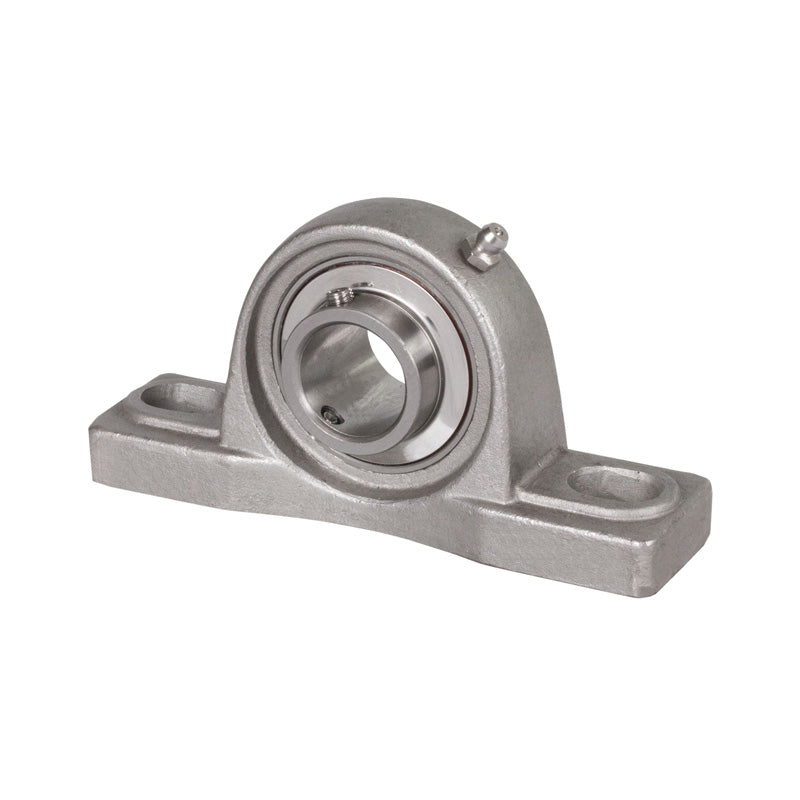

SSUCP211-32 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Stainless Insert
- Regular price
- CHF 139.00 ex VAT
- Sale price
- CHF 139.00
- Regular price
-
In stock
Quantity Price Breaks
3
CHF 123.71
4
CHF 116.76
9
CHF 115.37
19
CHF 113.98
49
CHF 112.59
99
CHF 111.20
499
CHF 104.25
999
CHF 102.86
1999
CHF 101.47
2999
CHF 100.08
4999
CHF 97.30
SKU:
SSUCP.211-32
SSUCP211-32 Imperial Stainless Steel Two Bolt Pillow / Plummer Block Housing with 2 inch Bore Stainless Insert
- Regular price
- CHF 139.00 ex VAT
- Sale price
- CHF 139.00
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 2 inch |
| h | = | 63.5mm |
| a | = | 219mm |
| e | = | 171mm |
| b | = | 60mm |
| s2 | = | 25mm |
| s1 | = | 20mm |
| g | = | 22mm |
| w | = | 126mm |
| B1 | = | 55.6mm |
| n | = | 22.2mm |
| Bolt | = | 16mm |
| Weight | = | 3.4 kg |
| Dynamic load | = | 3400 kgf |
| Static load | = | 2550 kgf |
| Rec max speed | = | 3100 rpm |
