SKU: SSBF.PL.208

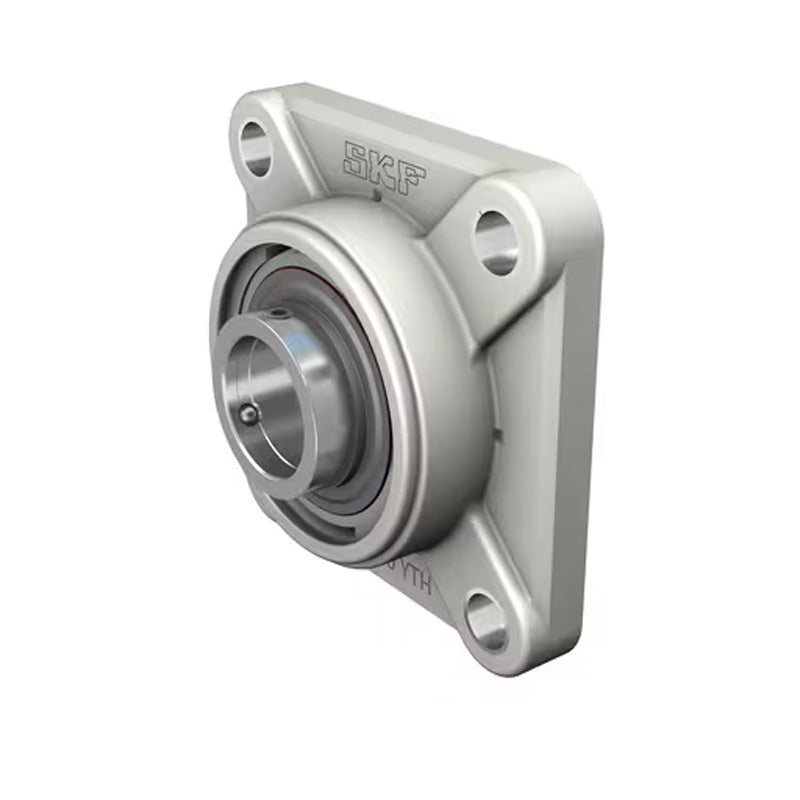

SSBFPL208 Metric Thermo Plastic Four Bolt Square Flange Housing with 40mm Bore Stainless Insert
- Regular price
- CHF 52.00 ex VAT
- Sale price
- CHF 52.00
- Regular price
-
Quantity Price Breaks
SSBFPL208 Metric Thermo Plastic Four Bolt Square Flange Housing with 40mm Bore Stainless Insert
- Regular price
- CHF 52.00 ex VAT
- Sale price
- CHF 52.00
- Regular price
-
Description
SSBFPL Thermo Plastic Four Bolt Square Flange Housing with Stainless Insert: Bearing unit with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti-crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 4 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved.
Technical
| d | = | 40mm |
| a | = | 129mm |
| e | = | 102mm |
| g | = | 17mm |
| L | = | 36.5mm |
| s | = | 14mm |
| i | = | 23mm |
| Bi | = | 34mm |
| n | = | 19mm |
| Bolt | = | 12mm |
| Weight | = | 0.33kg |
| Temperature Range | = | -35 to 102 deg C |
