SKU: SS.POS10.EU

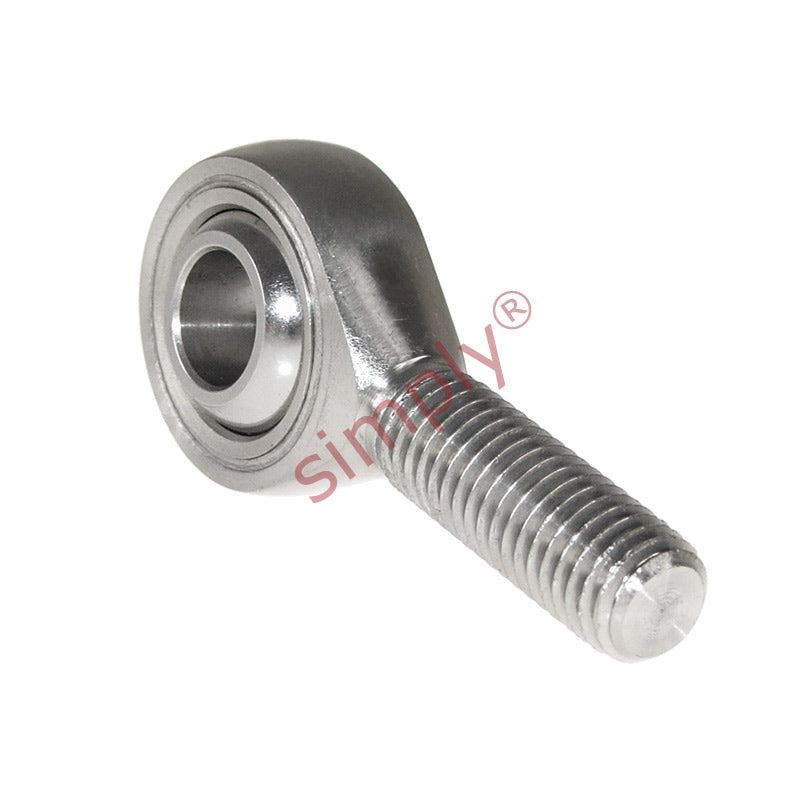

Budget SSPOS10 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- CHF 25.00 ex VAT
- Sale price
- CHF 25.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 22.25
19
CHF 21.00
29
CHF 20.75
39
CHF 20.50
49
CHF 20.25
74
CHF 20.00
99
CHF 18.75
199
CHF 18.50
249
CHF 18.25
499
CHF 18.00
999
CHF 17.50
SKU:
SS.POS10.EU
Budget SSPOS10 Right Hand Stainless Steel / PTFE Lined Plain Male Rod End 10mm Bore M10x1.5 Thread
- Regular price
- CHF 25.00 ex VAT
- Sale price
- CHF 25.00
- Regular price
-
Description
|
Stainless Steel Maintenance Free Male Rod End with PTFE Liner: Right hand thread male rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 10mm |
| B | = | 14mm |
| r1 | = | 0.6mm |
| C1 | = | 10.5mm |
| d1 max | = | 12.9mm |
| d2 | = | 26mm |
| d3 | = | M10x1.5 |
| h | = | 48mm |
| l1 | = | 29mm |
| l2 | = | 61mm |
| Ball diameter | = | 3/4 inch |
| Dynamic load Cr | = | 10 kN |
| Static load Cor | = | 13.6 kN |
| Max angle & | = | alpha |
| = | 13 | |
| Weight | = | 0.054 kg |
