SKU: SS.PHS18.EU

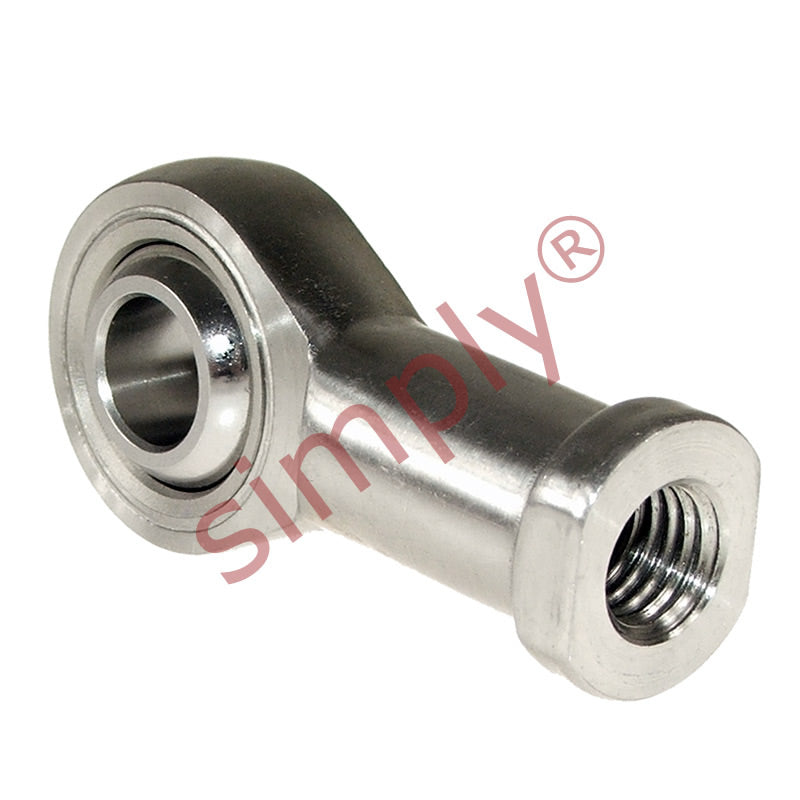

Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 44.50
19
CHF 42.00
29
CHF 41.50
39
CHF 41.00
49
CHF 40.50
74
CHF 40.00
99
CHF 37.50
199
CHF 37.00
249
CHF 36.50
499
CHF 36.00
999
CHF 35.00
SKU:
SS.PHS18.EU
Budget SSPHS18 Right Hand Stainless Steel / PTFE Lined Plain Female Rod End 18mm Bore M18x1.5 Thread
- Regular price
- CHF 50.00 ex VAT
- Sale price
- CHF 50.00
- Regular price
-
Description
|
Stainless Steel Maintenance Free Female Rod End with PTFE Liner: Right hand thread female rod end consisting of AISI 420 Stainless Steel body with an AISI 440C Stainless Steel ball running in a PTFE maintenance free liner captive in an AISI 304 Stainless Steel ball mount. Benefits: Cost effective replacement bearing, sliding surfaces are steel against PTFE, maintenance free Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 18mm |
| B | = | 23mm |
| r1 | = | 0.6mm |
| C1 | = | 16.5mm |
| d1 max | = | 21.8mm |
| d2 | = | 42mm |
| d3 | = | M18x1.5 |
| h1 | = | 71mm |
| L3 | = | 36mm |
| L4 | = | 92mm |
| L5 | = | 10mm |
| d4 | = | 25mm |
| d5 | = | 31mm |
| S | = | 27mm |
| Ball diameter | = | 1-1/4 inch |
| Dynamic load Cr | = | 26.2mm |
| Static load Cor | = | 30.8mm |
| Max angle & | = | alpha |
| = | 15 | |
| Weight | = | 0.295 kg |
