SKU: SIKB5F-SKF

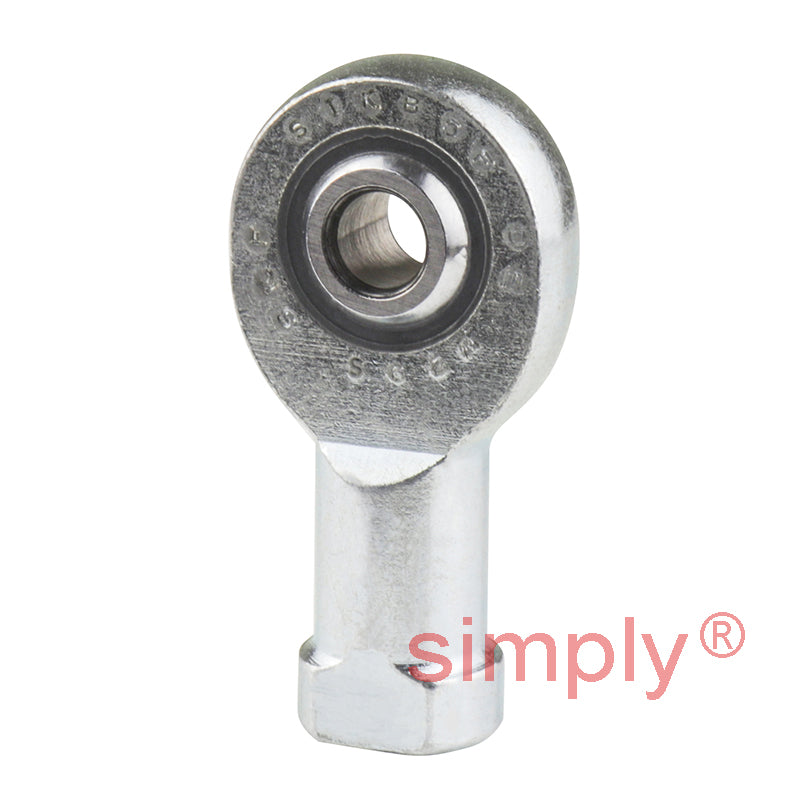

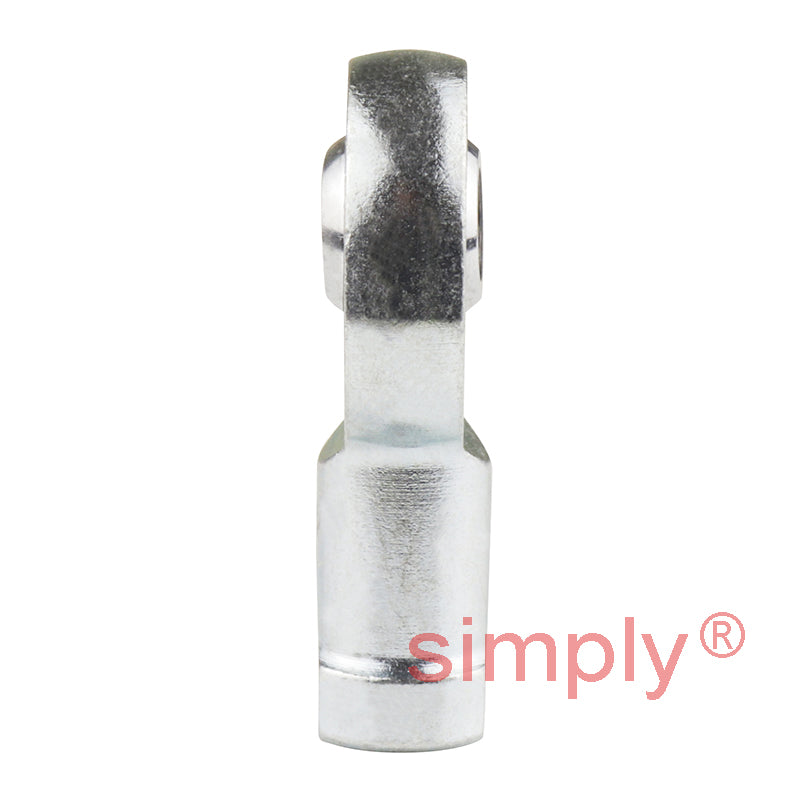

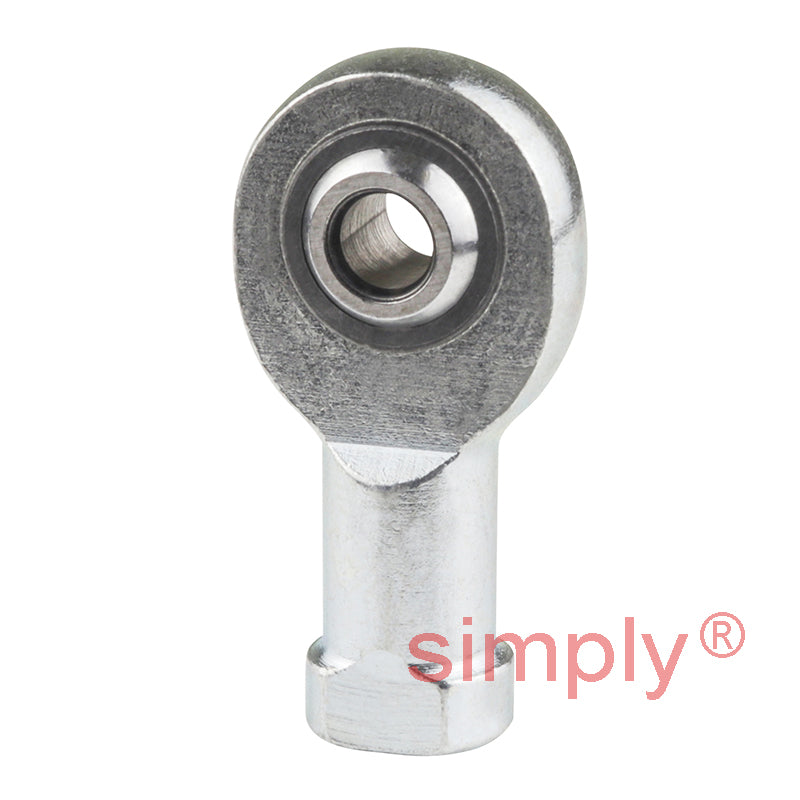

SKF SIKB5F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M5 Thread
- Regular price
- CHF 33.00 ex VAT
- Sale price
- CHF 33.00
- Regular price
-
In stock
Quantity Price Breaks
10
CHF 29.37
19
CHF 27.72
29
CHF 27.39
39
CHF 27.06
49
CHF 26.73
74
CHF 26.40
99
CHF 24.75
199
CHF 24.42
249
CHF 24.09
499
CHF 23.76
999
CHF 23.10
SKU:
SIKB5F-SKF
SKF SIKB5F Right Hand Steel / PTFE FRP Lined Plain Female Rod End M5 Thread
- Regular price
- CHF 33.00 ex VAT
- Sale price
- CHF 33.00
- Regular price
-
Description
|

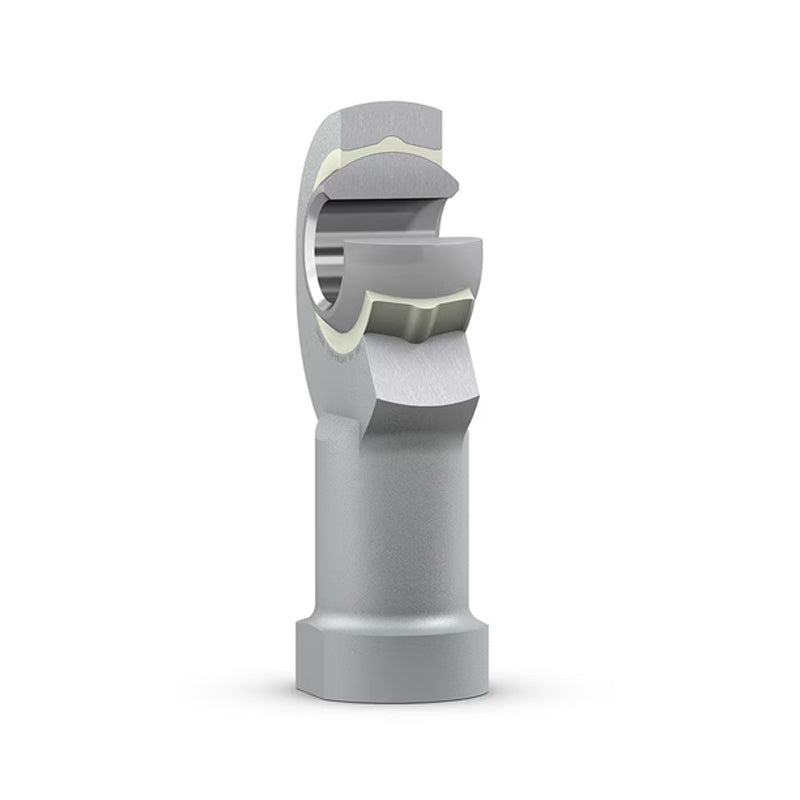

SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
