SKU: SB.205

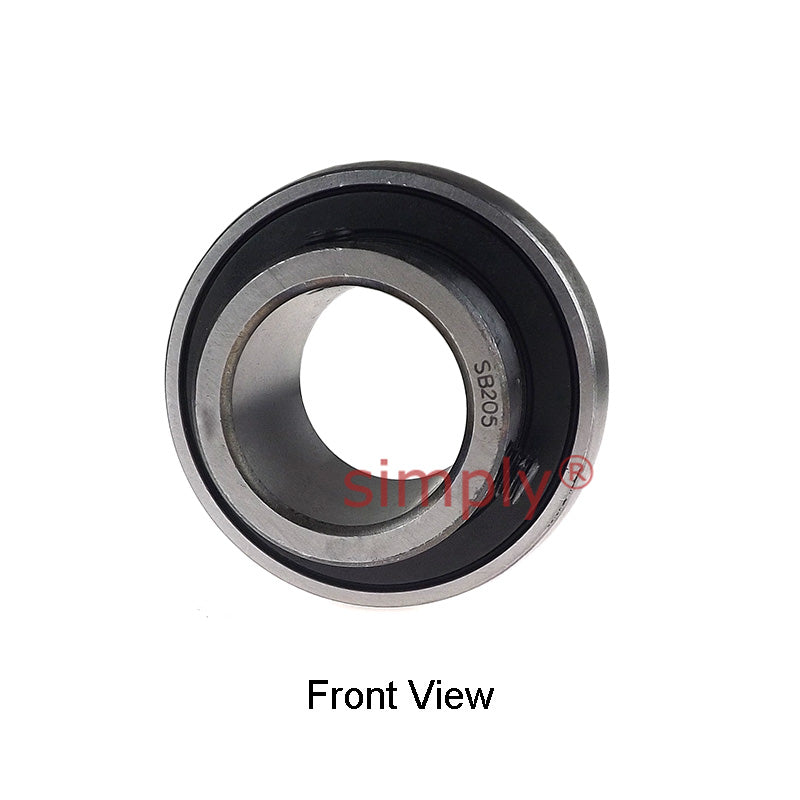

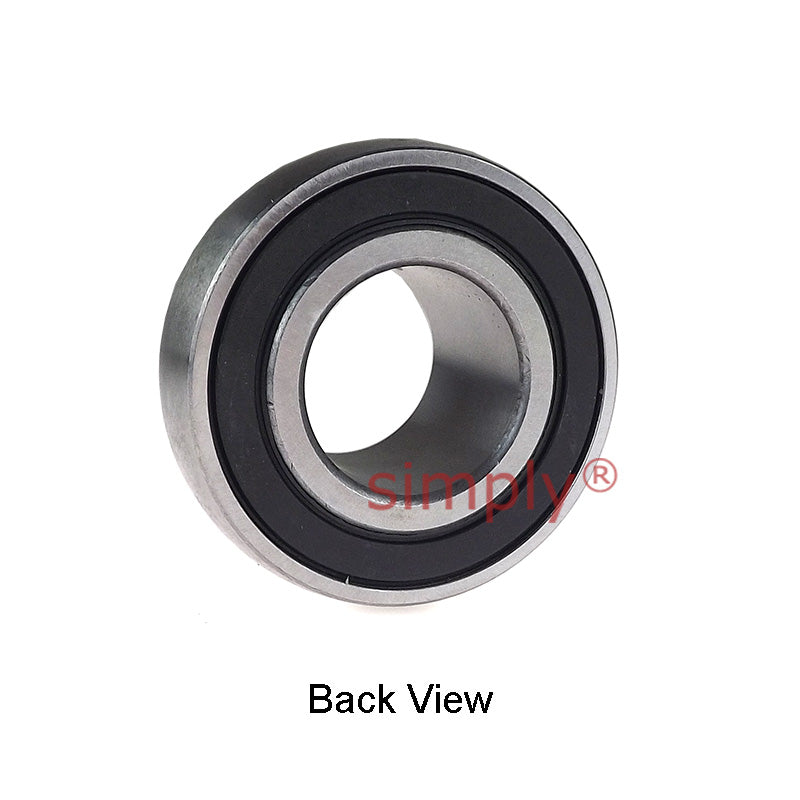

SB205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 7.12
19+
CHF 6.72
29+
CHF 6.64
39+
CHF 6.56
49+
CHF 6.48
74+
CHF 6.40
99+
CHF 6.00
199+
CHF 5.92
249+
CHF 5.84
499+
CHF 5.76
999+
CHF 5.60
SKU:
SB.205
SB205 Metric Bearing Insert with 25mm Bore 52mm Outside Dia
- Regular price
- CHF 8.00 ex VAT
- Sale price
- CHF 8.00
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |
Technical
| d | = | 25mm |
| Be | = | 15mm |
| D | = | 52mm |
| Bi | = | 27mm |
| n | = | 7mm |
| m | = | 18mm |
| G | = | 4.5mm |
| h | = | 3.9mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.18 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
