SKU: SB.204

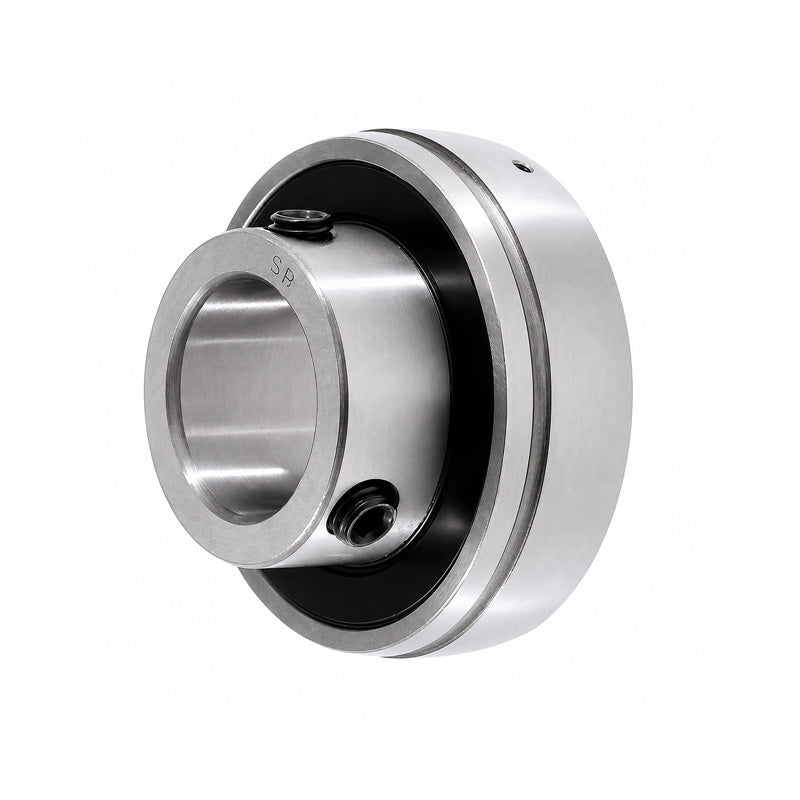

SB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 6.23
19+
CHF 5.88
29+
CHF 5.81
39+
CHF 5.74
49+
CHF 5.67
74+
CHF 5.60
99+
CHF 5.25
199+
CHF 5.18
249+
CHF 5.11
499+
CHF 5.04
999+
CHF 4.90
SKU:
SB.204
SB204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
- Regular price
- CHF 7.00 ex VAT
- Sale price
- CHF 7.00
- Regular price
-
Description
|
SB or 12--G Series Insert: Sealed bearing insert with grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing, It has a flat back to allow close proximity fitment of shafts and rollers.. |

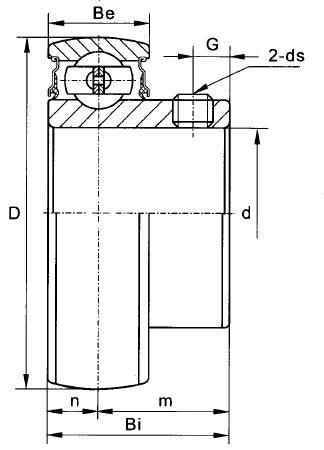

Technical
| d | = | 20mm |
| Be | = | 14mm |
| D | = | 47mm |
| Bi | = | 25mm |
| n | = | 7mm |
| m | = | 18mm |
| G | = | 4.5mm |
| h | = | 3.9mm |
| Grub screw | = | M6X1.0 |
| Weight | = | 0.15 kg |
| Dynamic load | = | 1000 kgf |
| Static load | = | 630 kgf |
| Rec max speed | = | 7450 rpm |
