SKU: SAKB14F-SKF

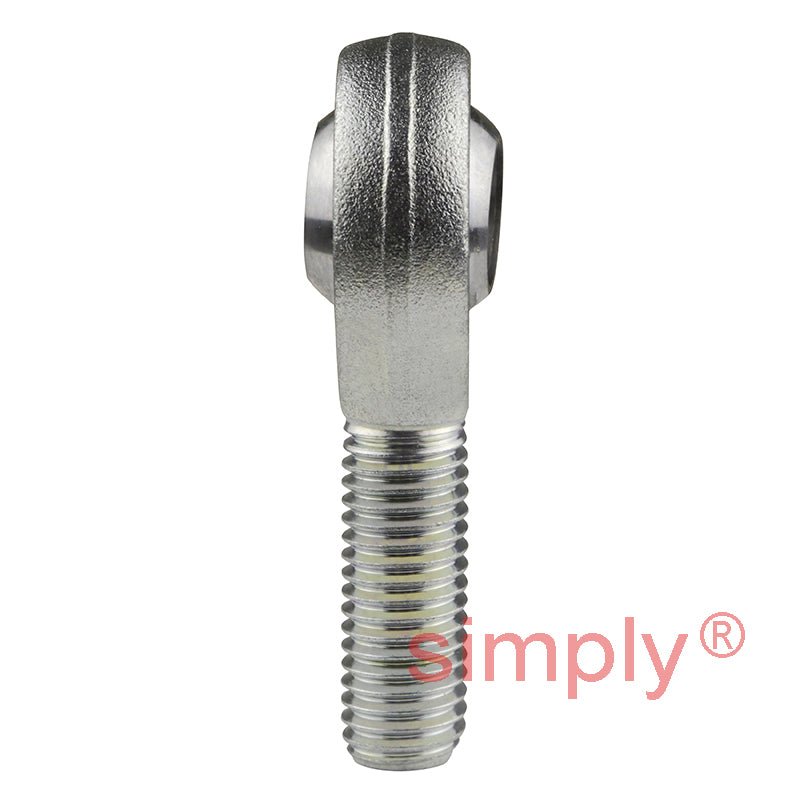

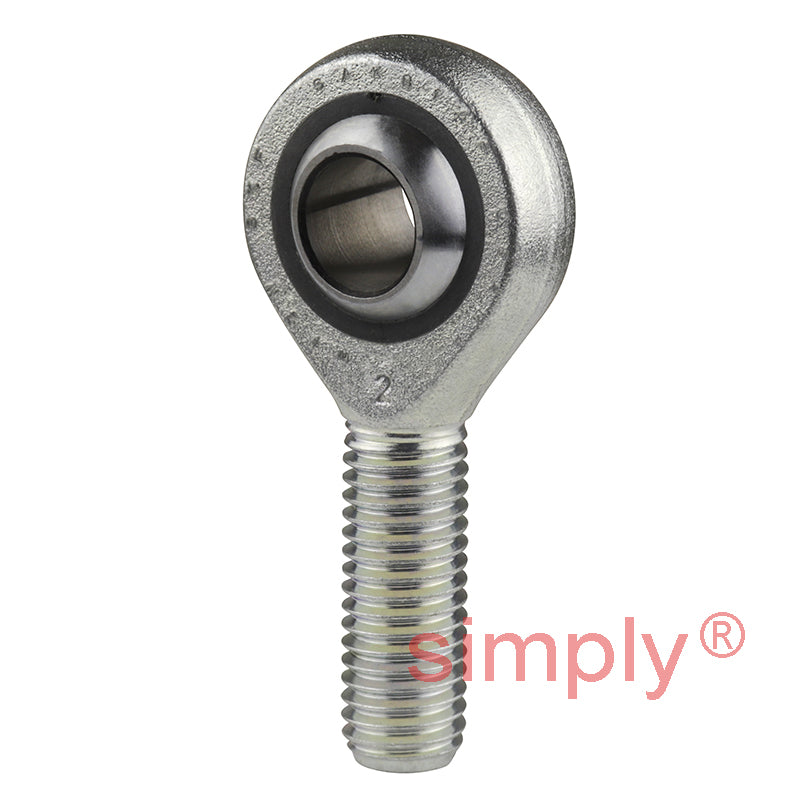

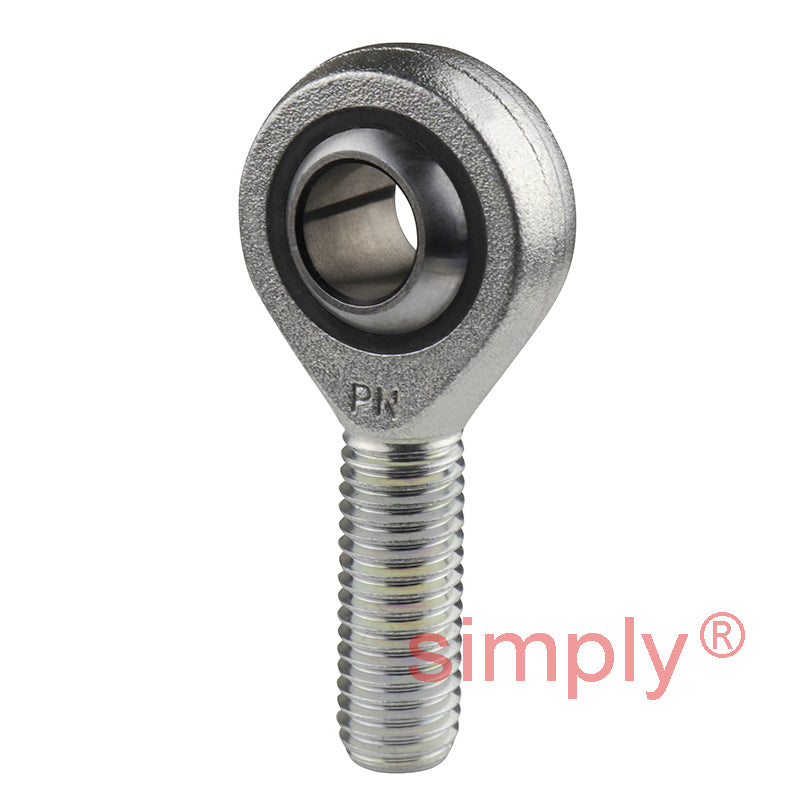

SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- CHF 74.00 ex VAT
- Sale price
- CHF 74.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 65.86
19
CHF 62.16
29
CHF 61.42
39
CHF 60.68
49
CHF 59.94
74
CHF 59.20
99
CHF 55.50
199
CHF 54.76
249
CHF 54.02
499
CHF 53.28
999
CHF 51.80
SKU:
SAKB14F-SKF
SKF SAKB14F Right Hand Steel / PTFE FRP Lined Plain Male Rod End M14 Thread
- Regular price
- CHF 74.00 ex VAT
- Sale price
- CHF 74.00
- Regular price
-
Description
|
SKF SAKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
Downloads
Reviews
