SKU: RSHEY50-XL-N-INA

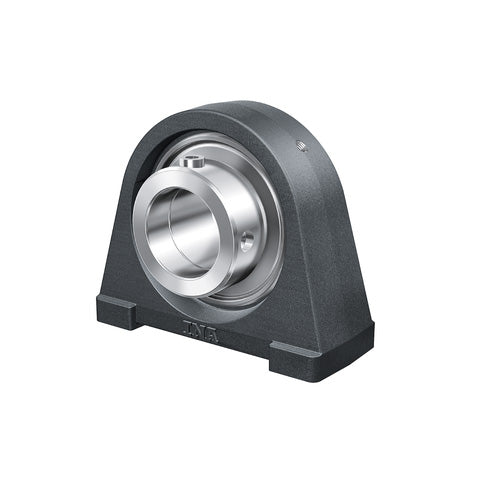

INA RSHEY50XLN Cast Iron Threaded Base Plummer Block Housing with Grub Screw Insert 50mm Bore
- Regular price
- CHF 92.00 ex VAT
- Sale price
- CHF 92.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 81.88
19+
CHF 77.28
29+
CHF 76.36
39+
CHF 75.44
49+
CHF 74.52
74+
CHF 73.60
99+
CHF 69.00
199+
CHF 68.08
249+
CHF 67.16
499+
CHF 66.24
999+
CHF 64.40
SKU:
RSHEY50-XL-N-INA
INA RSHEY50XLN Cast Iron Threaded Base Plummer Block Housing with Grub Screw Insert 50mm Bore
- Regular price
- CHF 92.00 ex VAT
- Sale price
- CHF 92.00
- Regular price
-
Description
|
INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with grub screws in the inner ring. This cast iron housing is a single-piece unit with a high load carrying capacity and features a lubrication groove to facilitate relubrication of the bearing insert. This plummer block housing has a short base and is screw mounted to the adjacent construction by blind threaded holes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. Benefits: High load carrying capacity, re-lubricatable, grub screw fixing, tolerates misalignment of the shaft. |
