SKU: RNAO45x62x40-MB
Major Brand RNAO45x62x40 Double Row Needle Roller Bearings with Machined Rings without an Inner Ring
- Regular price
- CHF 61.00 ex VAT
- Sale price
- CHF 61.00
- Regular price
-
Not in stock
Quantity Price Breaks
10
CHF 54.29
19
CHF 51.24
29
CHF 50.63
39
CHF 50.02
49
CHF 49.41
74
CHF 48.80
99
CHF 45.75
199
CHF 45.14
249
CHF 44.53
499
CHF 43.92
999
CHF 42.70
SKU:
RNAO45x62x40-MB
Major Brand RNAO45x62x40 Double Row Needle Roller Bearings with Machined Rings without an Inner Ring
- Regular price
- CHF 61.00 ex VAT
- Sale price
- CHF 61.00
- Regular price
-
Description
|
Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |

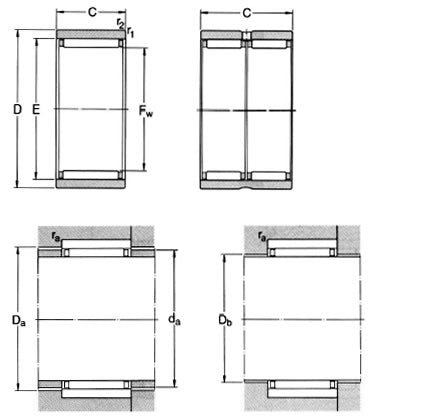

Technical
| Fw | = | 45mm |
| D | = | 62mm |
| C | = | 40mm |
| Dynamic load | = | 64400 N |
| Static load | = | 137000 N |
| Fatigue load limit Pu | = | 16600 N |
| Speed in grease | = | 6300 rpm |
| Speed in oil | = | 9000 rpm |
| E | = | 53mm |
| r1r2 min | = | 0.3mm |
| da | = | 52.2mm |
| Da | = | 53.5mm |
| Db | = | 46mm |
| ra max | = | 0.3mm |
| Weight | = | 380 g |
