SKU: RNAO22x30x13-EU

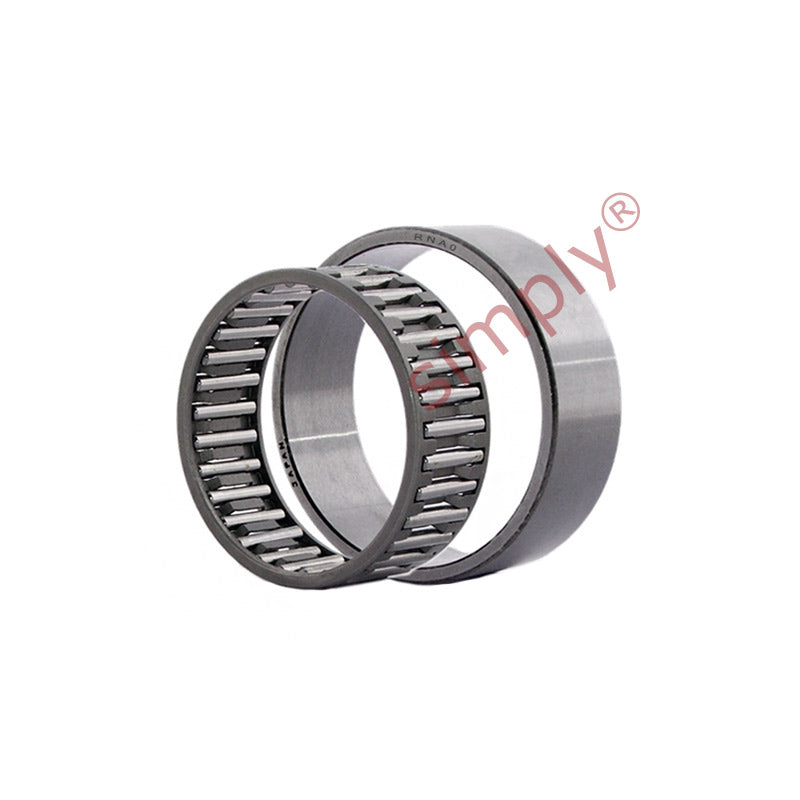

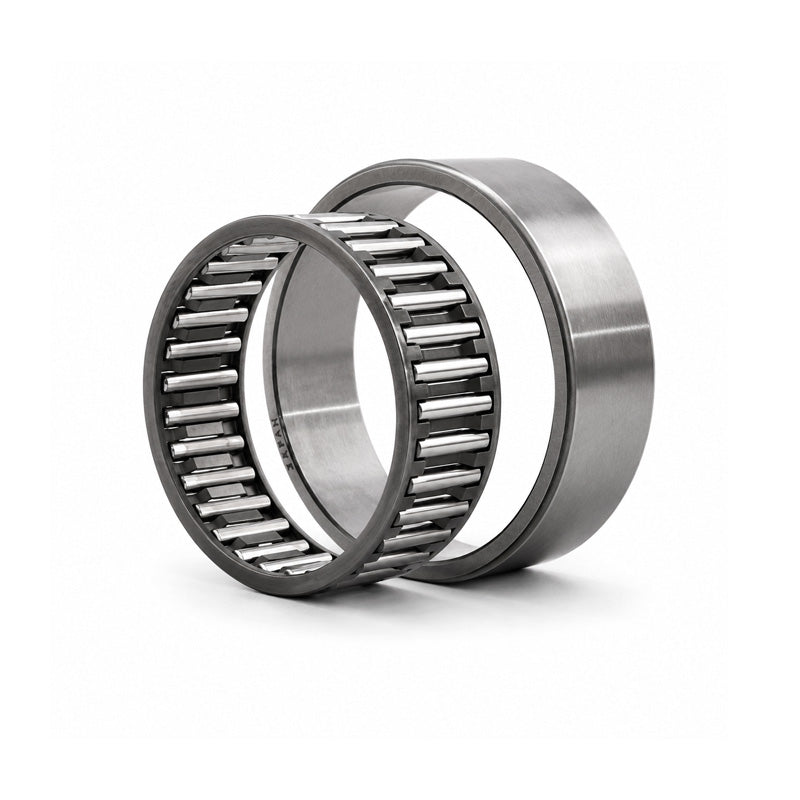

RNAO22x30x13 Budget Needle Roller Bearing no Flanges or Shaft Sleeve
- Regular price
- CHF 20.00 ex VAT
- Sale price
- CHF 20.00
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
10
CHF 17.80
19
CHF 16.80
29
CHF 16.60
39
CHF 16.40
49
CHF 16.20
74
CHF 16.00
99
CHF 15.00
199
CHF 14.80
249
CHF 14.60
499
CHF 14.40
999
CHF 14.00
Description
|
Budget Needle Roller Bearing without Flanges and without Inner ring: Supplied without inner rings the caged needle and outer shell are separable items enabling either mounting together or individually. The cages can be shaft mounted for assembly into an already pre-installed outer ring component. Benefits: Supplied without inner ring, separable - ease of mounting, can be used with a wide range of available inner rings |
Technical
| Fw | = | 22mm |
| D | = | 30mm |
| C | = | 13mm |
| Dynamic load C | = | 10100 N |
| Static load Co | = | 16300 N |
| Fatigue load limit Pu | = | 1860 N |
| Speed in grease | = | 12000 rpm |
| Speed in oil | = | 18000 rpm |
| E | = | 26mm |
| r1r2 min | = | 0.3mm |
| da | = | 25.6mm |
| Da | = | 26.3mm |
| Db | = | 22.4mm |
| ra max | = | 0.3mm |
| Weight | = | 27 g |
