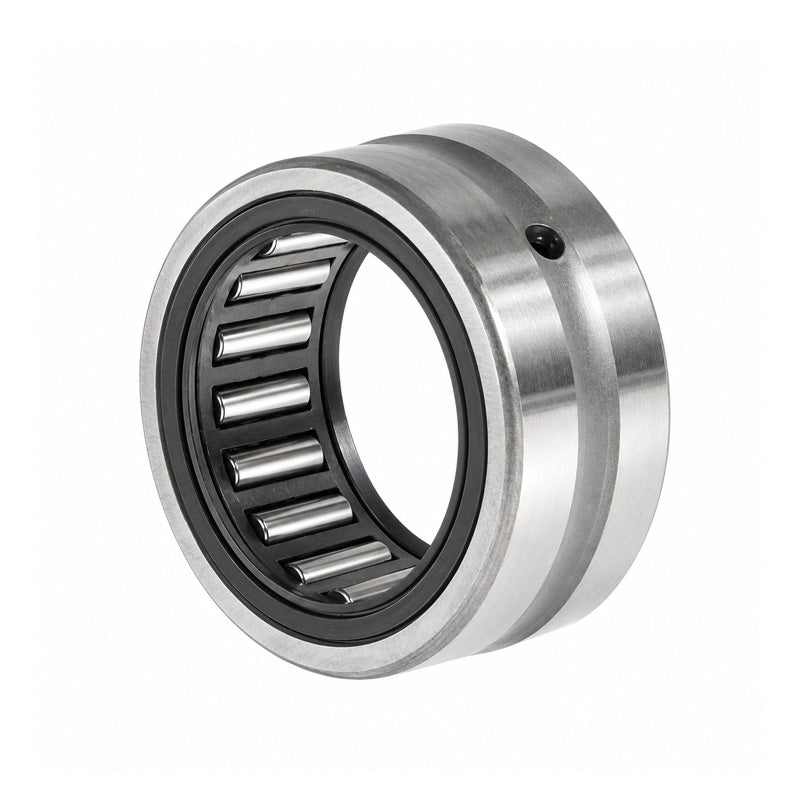

Major Brand RNA6916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x54mm

SKU: RNA6916-MB

Major Brand RNA6916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x54mm

CHF 264.00 ex VAT
CHF 264.00
ex VAT
In stock

Quantity Price Breaks

10 CHF 234.96
19 CHF 221.76
29 CHF 219.12
39 CHF 216.48
49 CHF 213.84
74 CHF 211.20
99 CHF 198.00
199 CHF 195.36
249 CHF 192.72
499 CHF 190.08
999 CHF 184.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RNA6916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x54mm
SKU: RNA6916-MB

Major Brand RNA6916 Needle Roller Bearing With Flanges without Shaft Sleeve 90x110x54mm

CHF 264.00 ex VAT
CHF 264.00
ex VAT

Description

Needle Roller Bearing with Flanges: Manufactured with flanges (annular rings) in the outside housing to locate the needle roller cage, generally of a single row of rollers design with the exception of the RNA69 and NA69 designs which have 2 rows of needle roller cage assemblies.
Benefits: Economical solution, non separable, can be used with a wide range of inner rings

Technical

Fw = 90mm
D = 110mm
C = 54mm
Dynamic load = 134000 N
Static load = 315000 N
Fatigue load limit Pu = 41500 N
Speed in grease = 3200 rpm
Speed in oil = 4500 rpm
r1r2 = 1mm
Da max = 105mm
ra max = 1mm
Seal = CR90x110x12CRW1R
Weight = 990 g
