SKU: RCJ40-XL-N-FA125-INA

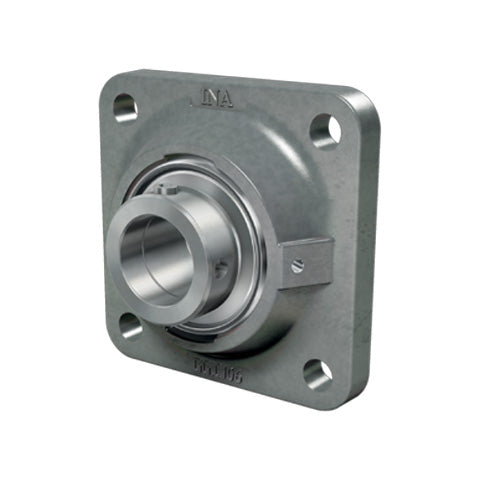

INA RCJ40XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore
- Regular price
- CHF 92.00 ex VAT
- Sale price
- CHF 92.00
- Regular price
-
In stock
Quantity Price Breaks
10+
CHF 81.88
19+
CHF 77.28
29+
CHF 76.36
39+
CHF 75.44
49+
CHF 74.52
74+
CHF 73.60
99+
CHF 69.00
199+
CHF 68.08
249+
CHF 67.16
499+
CHF 66.24
999+
CHF 64.40
SKU:
RCJ40-XL-N-FA125-INA
INA RCJ40XLNFA125 Four Bolt Cast Iron Square Housing with Eccentric Collar Insert and Anti-Corrosion Protection 40mm Bore
- Regular price
- CHF 92.00 ex VAT
- Sale price
- CHF 92.00
- Regular price
-
Description
|
INA 4 Bolt Square Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This square cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a Corrotect® coating which makes them suitable for use if moisture, contaminated water, salt spray mist, weakly alkaline or weakly acidic cleaning agents are present. Benefits: Re-lubricatable, eccentric collar, corrosion-resistant, tolerates misalignment of the shaft. |
