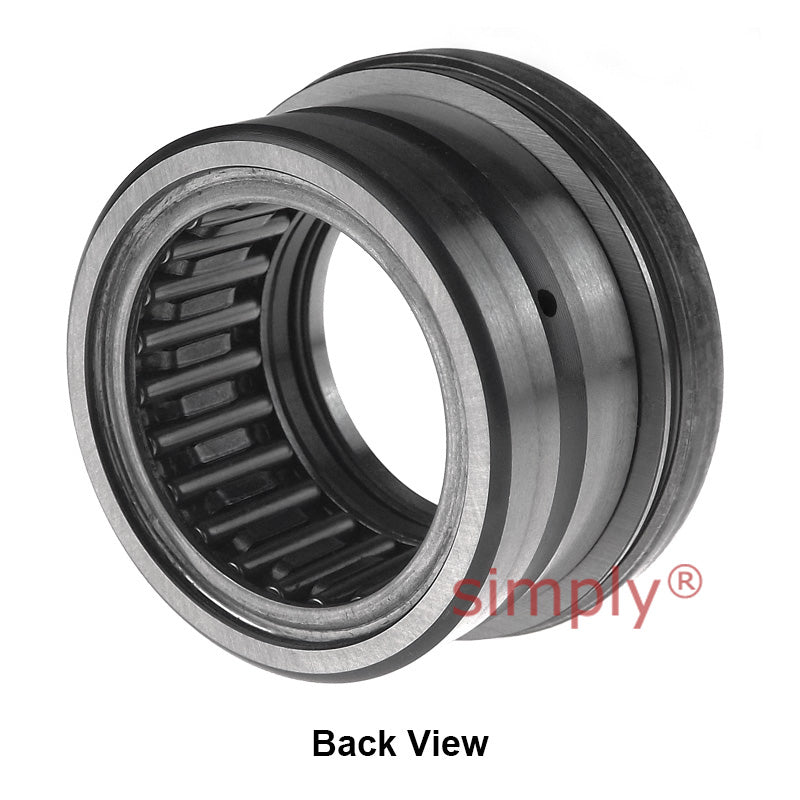

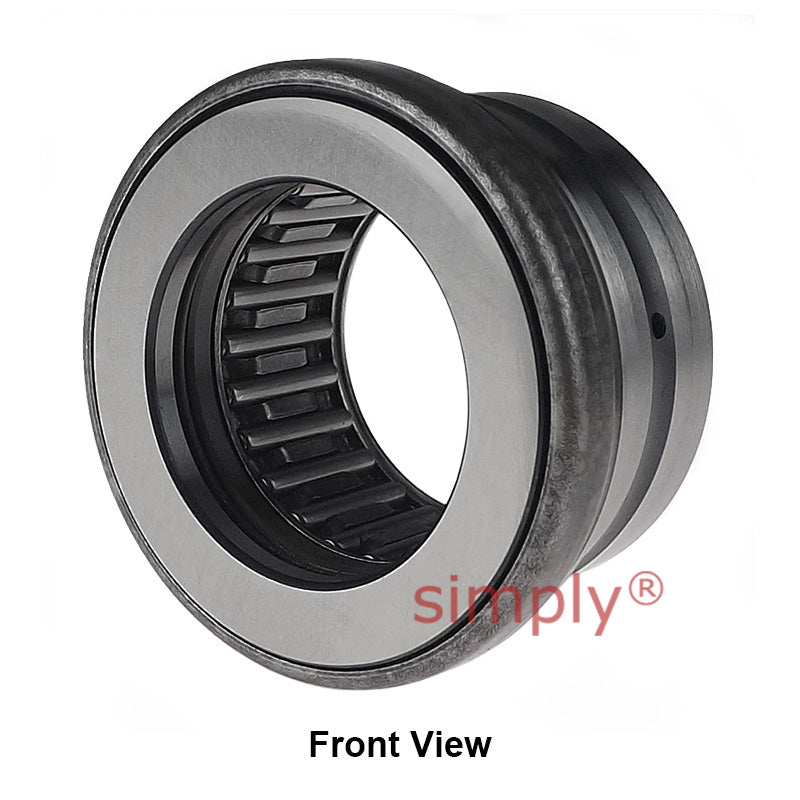

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

SKU: RAXZ560-MB

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

CHF 813.00 ex VAT
CHF 813.00
ex VAT
Not in stock

Quantity Price Breaks

10 CHF 723.57
19 CHF 682.92
29 CHF 674.79
39 CHF 666.66
49 CHF 658.53
74 CHF 650.40
99 CHF 609.75
199 CHF 601.62
249 CHF 593.49
499 CHF 585.36
999 CHF 569.10
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days
SKU: RAXZ560-MB

Major Brand RAXZ 560 Combined Bearing with Incorporated Thrust Plate 60x72x36mm Allow 2-3 Days

CHF 813.00 ex VAT
CHF 813.00
ex VAT

Description

Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines.
Benefits: Cost effective

Technical

Fw = 60mm
D = 72mm
C = 36mm
da = 60mm
Da = 86mm
C1 = 15mm
C2 = 11mm
rs min = 1.3mm
Radial dynamic load = 31.9 kN
Radial static load = 78.1 kN
Axial dynamic load = 71 kN
Axial static load = 255 kN
Speed rating = 3.5 rpm
Weight = 0.423 kg
